SED1200F

Features: ·1/8 or 1/16 duty cycle dot matrix drive· 20 character simultaneous display· Built in character generator ROM and RAM· Built in CR oscillator· Built in resistor array for LCD power supply· Compatible with 4 or 8 bit microprocessors· 2 kinds of character font·TTL Compatible· 5×7+Cursor li...

product image

SED1200F Picture
See larger image
SeekIC No. : 004487433 Detail

SED1200F: Features: ·1/8 or 1/16 duty cycle dot matrix drive· 20 character simultaneous display· Built in character generator ROM and RAM· Built in CR oscillator· Built in resistor array for LCD power supply·...

SED1200F Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SED1200F
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·1/8 or 1/16 duty cycle dot matrix drive
· 20 character simultaneous display
· Built in character generator ROM and RAM
· Built in CR oscillator
· Built in resistor array for LCD power supply
· Compatible with 4 or 8 bit microprocessors
· 2 kinds of character font
· TTL Compatible
· 5×7+Cursor line or 558 character font
· Power supply Logic : 2.5V to 5.5V
                            LCD : 3.5V to 5.5V
· Package ............ SED1200F : QFP1-80pin (plastic)
                              SED1200D : Die form

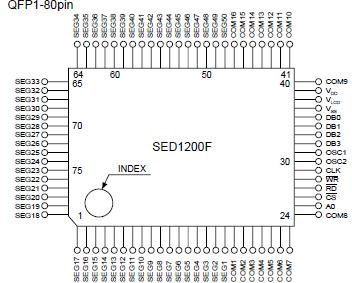

Pinout

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Supply voltage (1)
VDD
0.3 to+7.0
V
Supply voltage (2)
VLCD
VDD7.0 to VDD+0.3
V
Input voltage
VI
0.3 to VDD+0.3
V
Output voltage
VO
0.3 to VDD+0.3
V
Operating temperature
Topr
10 to+70
Storage temperature
Tstg
65 to+150



Description

The SED1200F is a dot matrix LCD controller/driver with a built in CG (character generator).

The SED1200F circuit consists of a CG ROM which contains 160 different characters, 4 words CG RAM, 20 words display data RAM and logic functions to operate a 20 character display. Additional characters may be used by writing CG data to the 4 words CG RAM.

The device also contains the resistor array for the LCD power supply. The SED1200F is fabricated Silicon Gate CMOS process and features very low power dissipation. This makes the device very desirable for applications in hand held, portable and other battery powered instruments.
