SED1190

Features: • Low-power CMOS technology• 64-bit common (row) driver• Display blanking• Duty cycle: 1/64 to 1/128• Daisy chain enable support• Wide range of LCD voltage: 14V to 25V• Supply voltage: 5.0V ±10%• Package: ............................... QFP...

product image

SED1190 Picture
See larger image
SeekIC No. : 004487432 Detail

SED1190: Features: • Low-power CMOS technology• 64-bit common (row) driver• Display blanking• Duty cycle: 1/64 to 1/128• Daisy chain enable support• Wide range of LCD volt...

SED1190 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SED1190
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low-power CMOS technology
• 64-bit common (row) driver
• Display blanking
• Duty cycle: 1/64 to 1/128
• Daisy chain enable support
• Wide range of LCD voltage: 14V to 25V
• Supply voltage: 5.0V ±10%
• Package: ............................... QFP1-80 pin (F0A)
                                                  QFP5-80 pin (F5A)
                                            DIE: Al pad chip (D0A)


Pinout

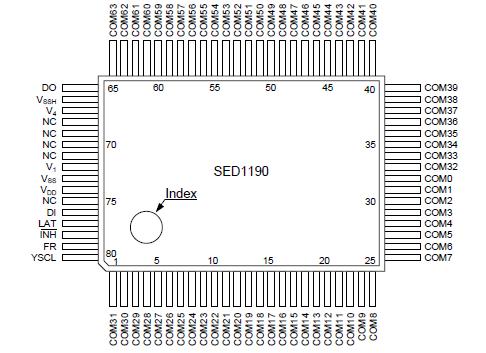

Connection Diagram


Specifications

Rating
Symbol
Value
Unit
Supply voltage (1)
VSS
7.0 to +0.3
V
Supply voltage (2)
VSSH
28.0 to +0.3
V
V1,V4
Input voltage
VI
VSS 0.3 to +0.3
V
Operating temperature
Topr
20 to +75
V
Storage temperature
Tstg
55 to +125
Soldering temperature and time
Tsol
260, 10

Notes:
1. All voltages referenced to a VDD of 0 V.
2. V1 and V4 must satisfy the relationship VDD V1, V4 VSSH
3. Exceeding the absolute maximum ratings can cause permanent damage to the device. Functional operation under these conditions is not implied.
4. Moisture resistance of flat packages can be reduced by the soldering process. Care should be taken to avoid thermally stressing the package during board assembly.




Description

The SED1190 is a dot matrix LCD common (row) driver for driving high-capacity LCD panel at duty cycles higher than 1/64. The LSI uses two serially connected, 32-bit shift registers to hold the display data, and level shifter converts the TTL level 64-bit parallel data from the shift registers to levels suitable for use by the LCD drive circuitry. The SED1190 generates common drive signals using the voltages supplied to LCD drive voltages pins.

The SED1190 is used in conjunction with the SED1180 (64-bit row driver) to drive a large capacity dot matrix LCD panel.
