SE9016

·Programmable Charge Current Up to 800mA.
·No MOSFET, Sense Resistor or Blocking Diode Required.
·Constant-Current/Constant-Voltage Operation with Thermal Protection to Maximize Charge Rate without Risk of Overheating.
·Charges Single Cell Li-Ion Batteries Directly from USB Port.
·Preset 4.2V Charge Voltage with ±1% Accuracy.
·20uA Supply Current in Shutdown.
·2.9V Trickle Charge Threshold
·Available Without Trickle Charge.
·Soft-Start Limits Inrush Current.

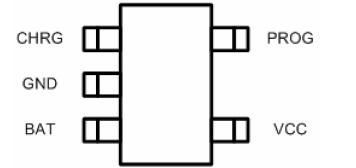

·Available in 5-Lead SOT-23 Package.

SE9016 is a complete constant-current & constant voltage linear charger for single cell lithium-ion and Lithium-Polymer batteries. Its SOT-23 package and low external component count make SE9016 ideally suited for portable applications. Furthermore, the SE9016 is specifically designed to work within USB power specification. At the same time, SE9016 can also be used in the standalone lithium-ion and Lithium-polymer battery charger.

No external sense resistor is needed, and no blocking diode is required due to the internal MOSFET architecture. Thermal feedback regulates the charge current to limit the die temperature during high power operation or high ambient temperature. The charge voltage is fixed at 4.2V, and the charge current can be programmed externally with a single resistor. The SE9016 automatically terminates the charge cycle when the charge current drops to 1/10th the programmed value after the final float voltage is reached.

When the input supply (wall adapter or USB supply) is removed, the SE9016 automatically enters a low current stage, dropping the battery drain current to less than 2uA. The SE9016 can be put into shutdown mode, reducing the supply
current to 20uA.

Other features include charge current monitor,undervoltage lockout, automatic recharge and a status pin to indicate charge termination and the presence of an input voltage.
