SE5117

Features: ·Typical 90mV dropout voltage at 150mA.·Guaranteed 1A output over the full operating temperature range.·650mV typical dropout voltage at full load.·Extremely tight load and line regulation.·Low temperature coefficient.·Current and thermal limiting. ·No-load stability.·Standard SOT-223 pa...

product image

SE5117 Picture
See larger image
SeekIC No. : 004487368 Detail

SE5117: Features: ·Typical 90mV dropout voltage at 150mA.·Guaranteed 1A output over the full operating temperature range.·650mV typical dropout voltage at full load.·Extremely tight load and line regulation...

SE5117 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SE5117
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·Typical 90mV dropout voltage at 150mA.
·Guaranteed 1A output over the full operating temperature range.
·650mV typical dropout voltage at full load.
·Extremely tight load and line regulation.
·Low temperature coefficient.
·Current and thermal limiting.
·No-load stability.
·Standard SOT-223 package.


Application

·Active SCSI terminators.
·Post regulators for switching supplies. Battery chargers.
·High-efficiency linear power supplies. Computer motherboard, display, graphic card DC/DC converter, such as 3.3V to 2.8V or 3.3V to 2.5V.


Pinout

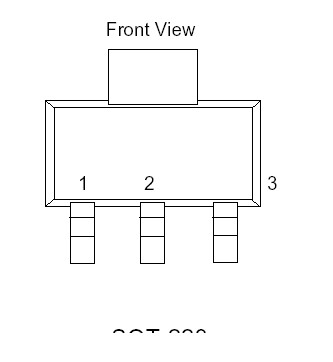

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Supply Input Voltage
Power Dissipation
Junction Temperature
VIN
PD
TJ
-0.7 to +7
Internally Limited(3)
0 to +125
V
--
°C
Lead Temperature
(soldering, 5 sec.)
TLEAD
260
°C
Storage Temperature
TSTG
-10 to +150
°C



Description

The SE5117 is an efficient linear voltage regulator. It has extra low dropout voltage. At light loads the typical dropout voltage is 5.5mV, and at full load the typical dropout voltage is 650mV. The output voltage accuracy is better than 2%.

The SE5117 has low ground current, so it can help prolong battery life. The SE5117 is specially designed for hand-held, battery-powered devices.
