SDZ6V8AQ

Features: • Transient protection for data lines to IEC 61000-4-2(ESD) 15KV(air), 8KV(contact)• Small package for use in portable equipment.• 6.8V Low Capacitance Zener DiodeApplication• ESD ProtectionPinoutSpecifications Characteristic Symbol Ratings Unit Power d...

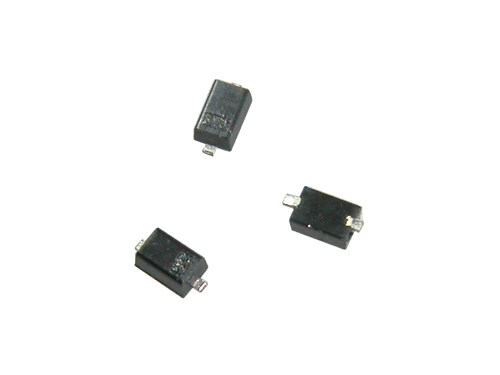

product image

SDZ6V8AQ Picture
See larger image
SeekIC No. : 004487286 Detail

SDZ6V8AQ: Features: • Transient protection for data lines to IEC 61000-4-2(ESD) 15KV(air), 8KV(contact)• Small package for use in portable equipment.• 6.8V Low Capacitance Zener DiodeApplica...

SDZ6V8AQ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SDZ6V8AQ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Transient protection for data lines to IEC 61000-4-2(ESD) 15KV(air), 8KV(contact)
• Small package for use in portable equipment.
• 6.8V Low Capacitance Zener Diode




Application

• ESD Protection




Pinout



Connection Diagram




Specifications

Characteristic Symbol Ratings Unit
Power dissipation PD
 120 mW
Junction temperature Tj 150 °C
Storage temperature Tstg -55 ~ 150 °C





Description

Constant Voltage regulation
This production of the SDZ6V8AQ is widely used to regulate the voltage across a circuit. When connected in paralled with a variable voltage source so that it is reverse biased, a zener diode conducts when the voltage reached the diode's reverse breakdown voltage. All products of the SDZ6V8AQ are available in green (RoHS compliant).
