Features:

COMPLETE 12-BIT DATA ACQUISITION SYSTEM IN A MINIATURE PACKAGE
INPUT RANGES SELECTABLE FOR UNIPOLAR OR BIPOLAR OPERATION
THROUGHPUT RATES: 862/3 872/3
          8-BIT ACCURACY: 45kHz 67kHz
        12-BIT ACCURACY: 33kHz 50kHz
SELECTABLE GAINS OF 1, 10, AND 100
FULL MICROPROCESSOR COMPATIBLE INTERFACE
GUARANTEED NO MISSING CODES OVER TEMPERATURE
SURFACE-MOUNT OR PIN GRID ARRAY PACKAGE OPTIONS
HIGH RELIABILITY SCREENED VERSIONS AVAILABLE
FULL SPECIFICATION OVER THREE TEMPERATURE RANGES:
    0 to +70°C, 25 to +85°C, 55 to +125°C
EVERY UNIT SUPPLIED WITH ELECTRICAL TEST DATA



Application

 INDUSTRIAL PROCESS MONITORING
 AIRBORNE SYSTEMS MONITORING
 ENGINE MONITORING
POWER PLANT MONITORING
 SECURITY SYSTEMS MONITORING
 AUTOMATIC TEST EQUIPMENT



Pinout

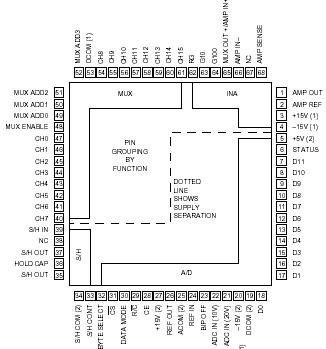

  Connection Diagram


Specifications

+VCC to ACOM ...................................................................... 0.5V to +16V
VCC to ACOM ....................................................................... +0.5 to 16V
+VDD to DCOM ..................................................................... 0.5V to +7.0V
Analog Input Signal Range ................................. +VCC +20V to VCC 20V
Digital Input Signal ............................................................... 0.5V to +VDD
ACOM to DCOM ..................................................................................... ±1V




Description

The SDM components are complete, pin-compatible, data acquisition systems housed in a hermetically sealed 1"-square leadless chip carrier or a 1.1"-square pin grid array. The SDM862 small package outlines and low power consumption provide an ideal data acquisition solution when space is at a premium.

The SDM862 devices comprise of an input multiplexer, instrumentation amplifier with selectable gains, sample/hold amplifier and A/D converter with microprocessor interface and three-state buffers.

The SDM family will accept unipolar or bipolar voltage inputs in the range 0 to +10V, ±5V and ±10V. For lowlevel signals, jumper-selectable gains of 10 or 100 can be applied. The number of input channels can be expanded by the addition of multiplexers. System integration is simplified by the microprocessor interface and the facility of the sample/hold amplifier being controlled directly by the SDM862 A/D converter.
