Product Details

Description

Features:

Low PropagatiomTime . . . . . . . . . . . . . . . . . . . . 600 psec
Low On Resistance
Low Insertion Loss
Low Capacitance:
    Analog Input . . . . . . . . . . . . . . . . . . . . . . . . . . 3.5pF typ.
    Input (Gate) . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.4pF typ.
    Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.3pF typ.
    Feedback. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.3pF typ.
Low Crosstalk . . . . . . . . . . . . . . . . . . . . . -107dB @ 3kHz
Bidirectional Operation

Application

Analog Switching
Audio Routing
Sample & Hold
Crosspoint Switches
Choppers
Video Switches

Pinout

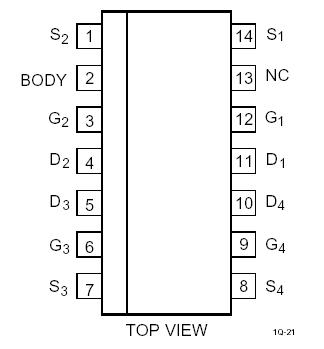

Connection Diagram

Specifications

SYMBOL	PARAMETER	SD5000/SD5400 MAX. VALUE	SD5001/SD5401 MAX. VALUE	SD5002/SD5402 MAX. VALUE	UNITS
Breakdown Voltage
V_DS	Drain-Source	20	10	15	V
V_SD	Source-Drain	20	10	15
V_DB	Drain-Body	25	15	22.5
V_SB	Source-Body	25	15	22.5
V_GS	Gate-Source	30/ - 25	25/ - 15	30/ - 22.5
V_GB	Gate-Body	30/ - 0.3	25/ - 0.3	30/ - 0.3
V_GD	Gate-Drain	30/ - 25	30/ - 15	30/ - 22.5

Description

The SD5000 Series are monolithic arrays of four bidirectional, high performance analog switches manufactured with implanted high-speed, high-voltage and low resistance double-difused MOS (DMOS) process. The maximum threshold of 2V permits simple TTL and CMOS SD5000 Series driving in small signal applications.
