SD4001

Features: Single power supply of 5V±10% Built-in prescaler (200MHz MAX. Vin=0.3VPP ), IF counter and LCD driver (1/2 duty, 1/2 bias, frame frequency:100Hz) Capable of receiving FM and MW in the whole world and LW in Europe. Tuning function ... Manual tuning, auto-tuning (seek and scan) and preset ...

product image

SD4001 Picture
See larger image
SeekIC No. : 004486565 Detail

SD4001: Features: Single power supply of 5V±10% Built-in prescaler (200MHz MAX. Vin=0.3VPP ), IF counter and LCD driver (1/2 duty, 1/2 bias, frame frequency:100Hz) Capable of receiving FM and MW in the whol...

SD4001 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SD4001
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Single power supply of 5V±10%
Built-in prescaler (200MHz MAX. Vin=0.3VPP ), IF counter and LCD driver (1/2 duty, 1/2 bias, frame frequency:100Hz)
Capable of receiving FM and MW in the whole world and LW in Europe.
Tuning function ... Manual tuning, auto-tuning (seek and scan) and preset memory scan.

Independent preset memory programming by six buttons for up to 18FM stations (sixFM1, FM2 and FM3 stations each), up to 12 MW stations (sixMW1and MW2 stations each), up to six LW stations and VF broadcasting stations.
Each last channel memory for FM : 3, MW:1 and VF : 1
VF auto-tuning (SK signal search) with DK stand-by function.
Control output of MTL (METAL), NR1 (NOISE REDUCTION), NR2 and AMS (AUTO MUSIC SEARCH) and its display.
Automatic preset station memory function
Loudness control output and its display
Built-in 12 hour/24 hour clock display function (possible to set no clock)



Pinout

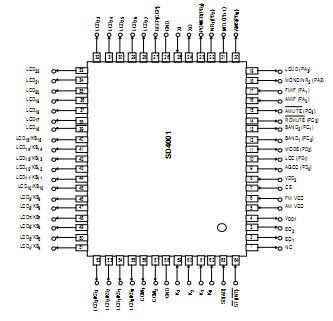

Connection Diagram


Description

The SD4001 is CMOS LSI chips developed for world-wide FM / MW / LW tuning with PLL frequency  synthesizer system.  The SD4001 can make a compact and high performance FM / MW / LW tuner  with clock function for high-end car stereo,   home stereo and so on because these CMOS LSIs are in  64-pin QFP package with built-in PLL frequency synthesizer, controller,  200 MHz prescaler, LCD  driver and IF counter.
