SD3932, US $ 89.29-89.29 , STMicroelectronics, SD3932 DataSheet download, circuit diagram from SeekIC.com

See larger image

SeekIC No. : 00220108 Detail

SD3932: Transistors RF MOSFET Power POWER R.F.

SD3932 Data Sheet

US $ 89.29~89.29 / Piece | Get Latest Price

Part Number:: SD3932
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
0~68

Unit Price
$89.29

Processing time
15 Days

View more price & deliveries

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SD3931-10 evaluate
US $40.03 - 42.88 / Piece

Transistors RF MOSFET Power POWER R.F.
SD3933 evaluate
US $76.18 - 76.18 / Piece

Transistors RF MOSFET Power POWER R.F.
SD394-70-72-591 evaluate
US $983.03 - 983.03 / Piece

PHOTODIODE AVALANCHE 10MM TO-3

Product Details

Quick Details

Configuration :	Dual	Transistor Polarity :	N-Channel
Frequency :	250 MHz	Gain :	26.8 dB at 123 MHz
Output Power :	350 W	Drain-Source Breakdown Voltage :	250 V
Continuous Drain Current :	20 A	Gate-Source Breakdown Voltage :	+/- 20 V
Maximum Operating Temperature :	+ 150 C	Package / Case :	M244
Packaging :	Tube

Description

Transistor Polarity : N-Channel
Maximum Operating Temperature : + 150 C
Configuration : Dual
Packaging : Tube
Frequency : 250 MHz
Gate-Source Breakdown Voltage : +/- 20 V
Package / Case : M244
Continuous Drain Current : 20 A
Drain-Source Breakdown Voltage : 250 V
Output Power : 350 W
Gain : 26.8 dB at 123 MHz

Pinout

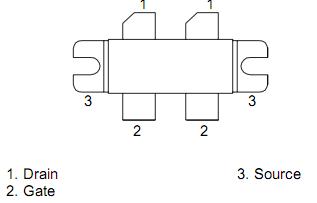

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_(BR)DSS	Drain Source Voltage	250	V
V_DGR	Drain-Gate Voltage (R_GS = 1MΩ)	250	V
V_GS	Gate-Source Voltage	±20	V
I_D	Drain Current	20	A
P_DISS	Power Dissipation	500	W
T_j	Max. Operating Junction Temperature	200	°C
T_STG	Storage Temperature	-65 to +150	°C

Description

The SD3932 is a gold metallized N-Channel MOS field-effect RF power transistor. It is intended for use in 100 V dc large signal applications up to 150 MHz.

Parameters:

Technical/Catalog Information	SD3932
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	N-Channel
Voltage - Rated	250V
Current Rating	20A
Package / Case	M244
Packaging	Tray
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SD3932 SD3932 497 8302 ND 4978302ND 497-8302
