SD2900: Transistors RF MOSFET Power N-Ch 65 Volt 0.9 Amp

SD2900 Data Sheet

Get Latest Price

Part Number:: SD2900
Mfg:: STMicroelectronics
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

SD290-11-31-241 evaluate
US $77.23 - 93.32 / Piece

PHOTODIODE LOCAP 7.6X5.6MM TO-8
SD290-12-22-241 evaluate
US $105.51 - 122.39 / Piece

PHOTODIODE BLUE 5.6X7.6MM TO-8
SD2902 evaluate
Transistors RF MOSFET Power N-Ch 65 Volt 2.5 Amp

Product Details

Quick Details

Configuration :	Single	Transistor Polarity :	N-Channel
Frequency :	500 MHz	Gain :	16 dB at 400 MHz
Output Power :	5 W	Drain-Source Breakdown Voltage :	65 V
Continuous Drain Current :	900 mA	Gate-Source Breakdown Voltage :	+/- 20 V
Maximum Operating Temperature :	+ 150 C	Package / Case :	M113
Packaging :	Bulk

Description

Configuration : Single
Transistor Polarity : N-Channel
Maximum Operating Temperature : + 150 C
Drain-Source Breakdown Voltage : 65 V
Gate-Source Breakdown Voltage : +/- 20 V
Packaging : Bulk
Frequency : 500 MHz
Output Power : 5 W
Continuous Drain Current : 900 mA
Gain : 16 dB at 400 MHz
Package / Case : M113

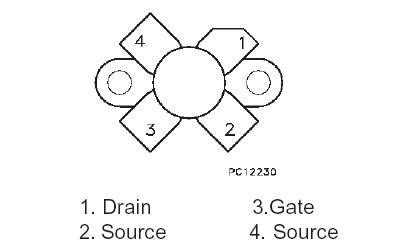

Pinout

Connection Diagram

Specifications

Symbol	Parameter	Value	Unit
V_(BR)DSS	Drain Source Voltage	65	V
V_DGR	Drain-Gate Voltage (R_GS = 1M)	65	V
V_GS	Gate-Source Voltage	±20	V
I_D	Drain Current	900	mA
P_DISS	Power Dissipation	21.9	W
T_j	Max. Operating Junction Temperature	200	^oC
T_STG	Storage Temperature	-65 to 150	^oC

Description

The SD2900 is a gold metallized N-Channel MOS field-effect RF power transistor. It is intended for use in 28 V DC large signal applications up to 500 MHz

Parameters:

Technical/Catalog Information	SD2900
Vendor	STMicroelectronics
Category	Discrete Semiconductor Products
Transistor Type	N-Channel
Voltage - Rated	65V
Current Rating	900mA
Package / Case	M113
Packaging	Bulk
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	SD2900 SD2900 497 5462 ND 4975462ND 497-5462
