SCN68562

Features: Dual full-duplex synchronous/asynchronous receiver and transmitter Multiprotocol operation¤ BOP: HDLC/ADCCP, SDLC, SDLC loop, X.25 or X.75 link level,etc.¤ COP: BISYNC, DDCMP¤ ASYNC: 5-8 bits plus optional parit Four character receiver and transmitter FIFOsPinoutSpecifications SY...

product image

SCN68562 Picture
SeekIC No. : 004486071 Detail

SCN68562: Features: Dual full-duplex synchronous/asynchronous receiver and transmitter Multiprotocol operation¤ BOP: HDLC/ADCCP, SDLC, SDLC loop, X.25 or X.75 link level,etc.¤ COP: BISYNC, DDCMP¤ ASYNC: 5-8 ...

floor Price/Ceiling Price

Part Number:
SCN68562
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Dual full-duplex synchronous/asynchronous receiver and transmitter
Multiprotocol operation
¤ BOP: HDLC/ADCCP, SDLC, SDLC loop, X.25 or X.75 link level,etc.
¤ COP: BISYNC, DDCMP
¤ ASYNC: 5-8 bits plus optional parit
Four character receiver and transmitter FIFOs



Pinout

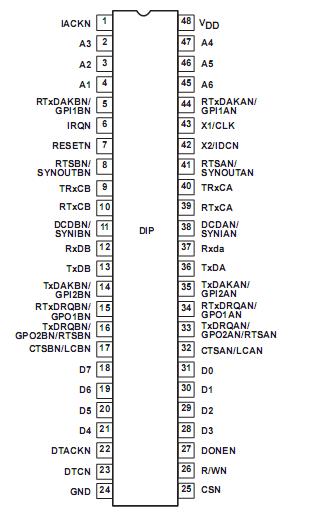

  Connection Diagram


Specifications

SYMBOL

PARAMETER

RATING

UNIT

TA


Operating ambient temperature2

0 to +70



TSTG

Storage Temperature

-65 to +150



VCC

voltage from VCC to GND3

-0.5 to +7.0

V

VS

Voltage from any pin to ground3

-0.5 to V CC+0.5

V




Description

The Philips Semiconductors SCN68562 Dual Universal Serial Communications Controller (DUSCC) is a single-chip MOS-LSI communications device that provides two independent, multi-protocol, full-duplex receiver/transmitter channels in a single package.  It supports bit-oriented and character-oriented (byte couand byte control) synchronous data link controls as well as asynchronous protocols.  The SCN68562 interfaces to the 68000 MPUs via asynchronous bus control signals and is capable of program-polled, interrupt driven, block-move or DMA data transfers The operating mode and data format of each channel can be programmed independently.

Each channel SCN68562 consists of a receiver, a transmitter, a 16-bit multifunction counter/timer, a digital phase-locked loop (DPLL), a parity/CRC generator and checker, and associated control circuits. The two channels share a common bit rate generator (BRG), operating directly from a crystal or an external clock, which provide 16 common bit rates simultaneously.  The operating rate for the receiver and transmitter of each channel can be independently selected from the BRG, the DPLL, the counter/timer, or from an external 1X or 16X clock, making the DUSCC well suited for dual-speed channel applications.  Data rates up to 4Mbits per second are supported.

The transmitter and receiver each contain a four-deep FIFO with appended transmitter command and receiver status bits and a shift register.  This permits reading and writing of up to four characters at a time, minimizing the potential of receiver overrun or transmitter underrun, and reducing interrupt or DMA overhead.  In addition, a flow control capability is provided to disable a remote transmitter when the FIFO of the local receiving device is full.

Two modem control inputs (DCD and CTS) and three modem control outputs are provided.  These inputs and outputs can be optionally programmed for other functions.
