SCD474K162A3Z25

CAP FILM 0.47UF 1.6KVDC SCREW

product image

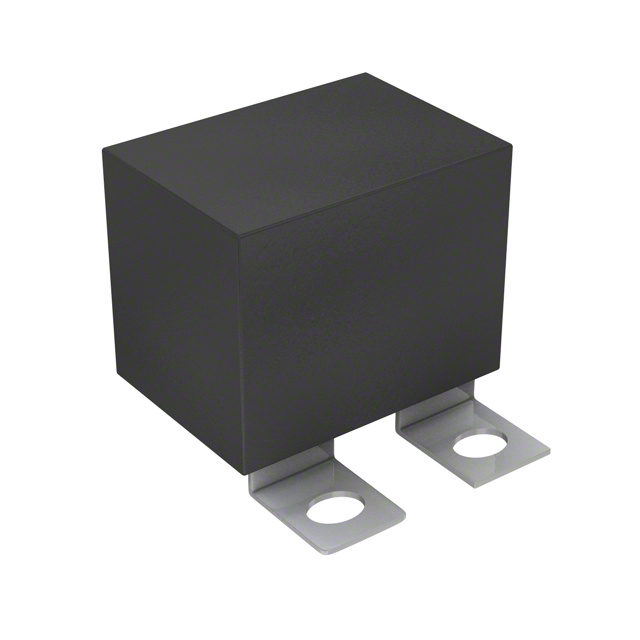

SCD474K162A3Z25 Picture
See larger image
SeekIC No. : 002968383 Detail

SCD474K162A3Z25: CAP FILM 0.47UF 1.6KVDC SCREW

SCD474K162A3Z25 Data Sheet

floor Price/Ceiling Price

US $ 8.49~8.49 / Piece | Get Latest Price
Part Number:
SCD474K162A3Z25
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~14
  • Unit Price
  • $8.49
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: SCD Manufacturer: Cornell Dubilier Electronics (CDE)
Capacitance: 0.47µF Voltage Rating - AC: 630V
Voltage Rating - DC: 1600V (1.6kV) Dielectric Material: Polypropylene, Metallized
Tolerance: ±10% ESR (Equivalent Series Resistance): 10 mOhm
Operating Temperature: -40°C ~ 85°C Mounting Type: Chassis Mount
Package / Case: Rectangular Box Size / Dimension: 1.776" L x 1.272" W (45.10mm x 32.30mm)
Height - Seated (Max): 1.402" (35.60mm) Mounting Style : Stud
Termination: Screw Terminals Lead Spacing: 1.000" (25.40mm)
Features: Low Inductance Applications: -

Description

Applications: -
Tolerance: ±10%
Capacitance: 0.47µF
Operating Temperature: -40°C ~ 85°C
Packaging: Bulk
Dielectric Material: Polypropylene, Metallized
Voltage Rating - DC: 1600V (1.6kV)
Mounting Type: Chassis Mount
Package / Case: Rectangular Box
Termination: Screw Terminals
Manufacturer: Cornell Dubilier Electronics (CDE)
Voltage Rating - AC: 630V
Lead Spacing: 1.000" (25.40mm)
ESR (Equivalent Series Resistance): 10 mOhm
Features: Low Inductance
Series: SCD
Size / Dimension: 1.776" L x 1.272" W (45.10mm x 32.30mm)
Height - Seated (Max): 1.402" (35.60mm)


Parameters:

Technical/Catalog InformationSCD474K162A3Z25
VendorCornell Dubilier Electronics (CDE)
CategoryCapacitors
Capacitance0.47F
Voltage - Rated 1600V (1.6kV)
Tolerance±10%
Dielectric MaterialPolypropylene Film
Package / Case-
PackagingBulk
Maximum Temperature85°C
Lead Spacing-
ESR (Equivalent Series Resistance)10.0 mOhm
Lifetime @ Temp.2000 Hrs @ 85°C
Mounting TypeChassis Mount
FeaturesLow Inductance
Lead Free StatusContains Lead
RoHS StatusRoHS Non-Compliant
Other Names SCD474K162A3Z25
SCD474K162A3Z25
