Product Details

Description



Features:

* Wide operating voltage range(VDD=6V ~ 12V)
* Low current comsumption .
* Attenuation can be controlled from 0dB to 66dB by 2dB/step
* Both of dual power suppliers of (+) and (-) and a single power supply can be used.
* Be capable of controlling attenuation by means of the built-in oscillator and the up/down terminals.


Pinout

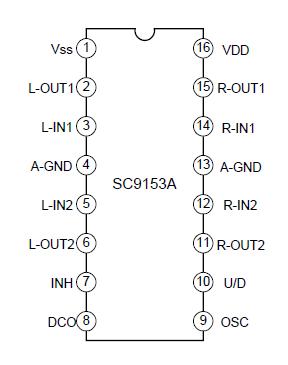

Connection Diagram


Specifications

         Characteristic

Symbol

Value

Unit

Supply Voltage(Pin 16)

VDD

13.0

V

Input / Output Voltage

VIN

VSS-0.3 ~ VDD+0.3

V

Power Dissipation

PD

150

mW

Operating Temperature

Topr

-30~ +75

Storage Temperature

Tstg

-55 ~ +125






Description

The SC9153A is CMOS IC which has been designed for electronization volume control of audio equipment,etc.
