Product Details

Description

Features:

* CMOS Technology
* Low Power Consumption
* Built-in Oscillation Circuit
* Least External Components
* 32 Function Keys8 Customer Codes(Up to 256 Commands)
* 6 Double Function Keys
* LED Indication of Transmission

Application

* Infrared Remote Control Transmitter Equipment
* Television Remote control Equipment
* VCR Remote control Equipment
* VCD, Audio Equipment

Pinout

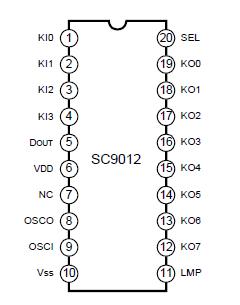

Connection Diagram

Specifications

Characteristic	Symbol	Value	Unit
Supply Voltage	V_DD	-0.3 ~ 5.0	V
Input Voltage With Respect To V_SS	V_IN	V_SS-0.3 ~ V_DD+0.3	V
Output Current	I_OUT(REO)	-20	mA
Power Dissipation	Pd	300	mW
Storage Temperature	Tstg	-40 ~ +125
Operating Temperature	T_OPR	-20 ~ +75

Description

SC9012 is an infrared remote control transmitter utilizing CMOS Technology specially designed for use on infrared remote control applications. It is capable of controlling 32 function keys and 6 double keys. Each system has a maximum of 8 commands; thus, SC9012 can provide up to a total of 256 commands.

The pin assignments and application circuit are optimized for easy PCB Layout and cost saving advantage. SC9012 is housed in a 20-pins SO package.
