SC8206

Features: High performance CMOS Technology Low power consumption Three operation modes: ordinary, nature and rhythm sleep. Three speed modes: strong, middle and lowMemory start-up modeMiddle wind start-up Buzzer indicator function operation. Two bits consumer codeBuilt-in 455kHz oscillator circui...

product image

SC8206 Picture
See larger image
SeekIC No. : 004485720 Detail

SC8206: Features: High performance CMOS Technology Low power consumption Three operation modes: ordinary, nature and rhythm sleep. Three speed modes: strong, middle and lowMemory start-up modeMiddle wind s...

SC8206 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SC8206
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

High performance CMOS Technology
Low power consumption
Three operation modes: ordinary, nature and rhythm sleep.
Three speed modes: strong, middle and low
 Memory start-up mode
 Middle wind start-up
Buzzer indicator function operation.
Two bits consumer code
 Built-in 455kHz oscillator circuit


Application

Fan remote controller
Air cleaner
Humidifier
Heater

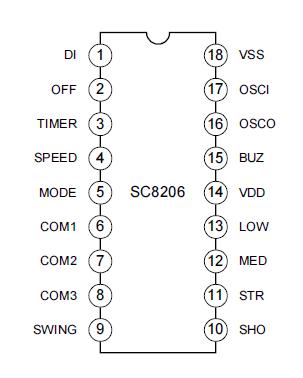

Pinout

Connection Diagram


Specifications

         Characteristic

Symbol

Value

Unit

Supply Voltage

VDD

-0.3 ~ 6

V

Input / Output Voltage

VIN

VSS-0.3 ~ VDD+0.3

V

Power Dissipation

PD

500

mW

Operating Temperature

Topr

-10 ~ +70

Storage Temperature

Tstg

-40 ~ +125






Description



SC8206 is a high performance electronic fan controller LSI, Speed control, off-timer, nature wind, sleep mode are all built into a single chip. Light control, buzzer output, key control input, as well as remote control decoding circuitry are all provided to build a full function electronic fan with remote control capability having the highest performance with the least external components. Pin assignment and application circuit are optimized for easy PCB layout and cost saving for electronic fan application.

SC8206 adopted DIP-18 or DIP-20 package.
