SC613

Features: Small size - MLP Micro 10 lead 3x3mm packageSelectable 5.0V or 4.5V output voltage140mA available with 4.5V output100mA available with 5.0V outputShort circuit protectionSoft Start functionShutdown current <2ASelectable fixed frequencies of 262kHz and 650kHzLow rippleRegulated to +/-5...

product image

SC613 Picture
See larger image
SeekIC No. : 004485669 Detail

SC613: Features: Small size - MLP Micro 10 lead 3x3mm packageSelectable 5.0V or 4.5V output voltage140mA available with 4.5V output100mA available with 5.0V outputShort circuit protectionSoft Start functio...

SC613 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SC613
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Small size - MLP Micro 10 lead 3x3mm package
Selectable 5.0V or 4.5V output voltage
140mA available with 4.5V output
100mA available with 5.0V output
Short circuit protection
Soft Start function
Shutdown current <2A
Selectable fixed frequencies of 262kHz and 650kHz
Low ripple
Regulated to +/-5%
Ease of use


Application

Cellular phones
LED photo flash for cellular phones
LED backlighting
PDA power supplies
Portable electronics
Electronic books
Wireless web appliances


Pinout

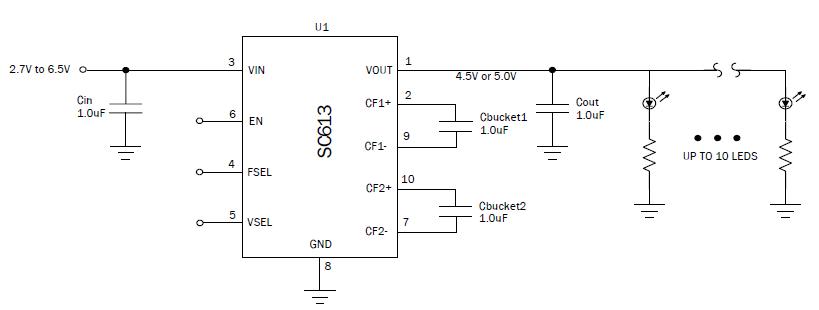

Connection Diagram


Specifications

Parameter
Symbol
Maximum
Units
Supply Voltage
VIN
-0.3 to +7.0
V
Output Voltage
VOUT
-0.3 to +7.0
V
VOUT Short Circuit Duration
SC
Indefinite
Thermal Resistance, Junction To Ambient
(JESD51 Standard Method)
JA
31
 °C/W
Operating Ambient
TA
-40 to +85
°C
Junction Temperature Range
TJC
-40 to +150
°C
Storage Temperature Range
TSTG
-65 to +150
°C
IR Reflow Temperature
TLEAD
260
°C



Description

The SC613 is a versatile charge pump designed for use in battery operated power supply applications. The wide input range is matched for Li-Ion battery applications. Only two 1uF ceramic bucket capacitors are required, and the inductorless implementation provides a reduced-EMI solution. Low noise mode switching circuitry and constant output current allow the use of 1uF input and output capacitors.

The SC613 charge pump regulator can be used for applications that require up to 140mA of output current with a 4.5V output. The 5.0V output version provides up to 100mA of output current. The small package size, low component count and lower overall system cost coupled with its low noise make the SC613 a superior solution compared to switch mode regulator designs.
