Series: -
Accessory Type: -
Convert From (Adapter End): -
Convert To (Adapter End): -
Module/Board Type: Programming Adapter
Manufacturer: Cardinal Components Inc.
For Use With/Related Products: PG3000, PG3100, PG2000
Features: • Multi-time slot switching capability for N x 64K channels (N = 1 to 32).
• Architecture optimized for the call processing environment: SCSATM, PEBTM, or MVIPTM compatible.
• Two software selectable expansion bus formats:
• SCbusTM /ST-BUSTM
• PEB
• Two software selectable local bus formats:
• ST-BUS
• PEB
• Enhanced input hysteresis threshold.
• 32 x 2048 channel switch
• Serial or parallel access to the SCbus.
• Internal support for SCbus clock fallback
• Built-in SCbus message bus interface
• Supports both Intel® and Motorola® processor interfaces
• 68-pin PLCC package
• 5v CMOS technology
ApplicationApplications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the specified use without further testing or modification.

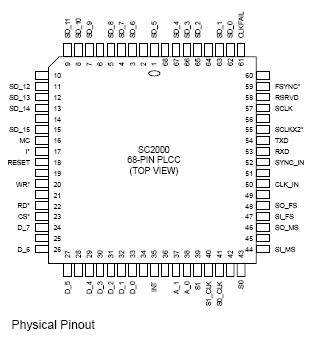

Pinout
Specifications
| Symbol |
Parameter |
Test Conditions |
Minimum |
Maximum |
Unit |
| TS |
Storage temperature |
|
-65 |
150 |
°C |
| VI |
Input voltage |
|
-0.5 |
7 |
V |
| PD |
Package power dissipation |
|
|
1 |
W |
DescriptionThe primary function of the SC2000 is to exchange digital data between the time slot on the local bus and the time slot on the expansion bus . A microprocessor interface allows the host CPU to define the time slots and serial streams between which the data is exchanged.
Parameters: | Technical/Catalog Information | SC2000 |
| Vendor | Cardinal Components Inc. |
| Category | Programmers, Development Systems |
| Accessory Type | SMD Programming Socket |
| For Use With/Related Products | PG3000, PG3100, PG2000 |
| Lead Free Status | Contains Lead |
| RoHS Status | RoHS Non-Compliant |
| Other Names | SC2000
SC2000
|
SC2000 Data Sheet
