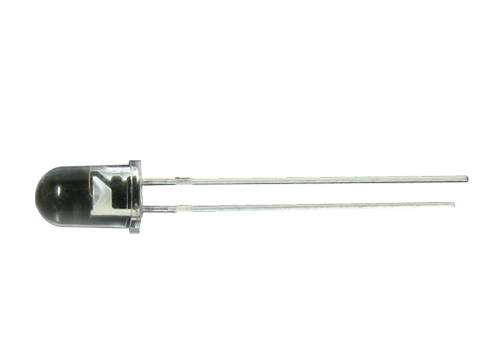

It has been used ,as a lense package, for a sign board and many electric appliances. * High brightness for the colorful sign boards * Low power consumption lamps can save more energy * Lensed package allow user to make more eradiating power .This is SB5311(B). |
Features of the SB5311 (B) are:(1)colorless transparency lens type;(2)5mm(T-13/4) all plastic mold type.
The absolute maximum ratings of the SB5311(B) can be summarized as:(1):the characteristic is power dissipation,the symbol is PD,the rating is 85,the unit is mW;(2):the characteristic is forward current,the symbol is IF,the rating is 20,the unit is mA;(3):the characteristic is peak forward current,the symbol is IFP,the rating is 50,the unit is mA;(4):the characteristic is reverse voltage,the symbol is VR,the rating is 4,the unit is V;(5):the characteristic is operating temperature,the symbol is Topr,the rating is -25 to 85,the unit is ;(6):the characteristic is storage temperature,the symbol is Tstg,the rating is -30 to 100,the unit is ;(7):the characteristic is soldering temperature,the symbol is Tsol,the rating is 260 for 5 seconds,the unit is .
The electrical characteristics of the SB5311(B) can be summarized as:(1):the characteristic is forward voltage,the symbol is VF,the Typ is 3.7,the Max is 4.2,the unit is V;(2):the characteristic is luminous intensity,the symbol is IV,the Min is 30,the Typ is 75,the unit is mcd;(3):the characteristic is peak wavelength,the symbol is P,the Typ is 435,the unit is nm;(4):the characteristic is spectrum bandwidth,the symbol is ,the Typ is 60,the unit is nm;(5):the characteristic is reverse current,the symbol is IR,the Max is 10,the unit is uA;(6):the characteristic is half angle,the symbol is 1/2,the Typ is ±11,the unit is deg.
Features of the SB5311(B) are:(1)colorless transparency lens type;(2)5mm(T-13/4) all plastic mold type.
The absolute maximum ratings of the SB5311(B) can be summarized as:(1):the characteristic is power dissipation,the symbol is PD,the rating is 85,the unit is mW;(2):the characteristic is forward current,the symbol is IF,the rating is 20,the unit is mA;(3):the characteristic is peak forward current,the symbol is IFP,the rating is 50,the unit is mA;(4):the characteristic is reverse voltage,the symbol is VR,the rating is 4,the unit is V;(5):the characteristic is operating temperature,the symbol is Topr,the rating is -25 to 85,the unit is ;(6):the characteristic is storage temperature,the symbol is Tstg,the rating is -30 to 100,the unit is ;(7):the characteristic is soldering temperature,the symbol is Tsol,the rating is 260 for 5 seconds,the unit is .
The electrical characteristics of the SB5311(B) can be summarized as:(1):the characteristic is forward voltage,the symbol is VF,the Typ is 3.7,the Max is 4.2,the unit is V;(2):the characteristic is luminous intensity,the symbol is IV,the Min is 30,the Typ is 75,the unit is mcd;(3):the characteristic is peak wavelength,the symbol is P,the Typ is 435,the unit is nm;(4):the characteristic is spectrum bandwidth,the symbol is ,the Typ is 60,the unit is nm;(5):the characteristic is reverse current,the symbol is IR,the Max is 10,the unit is uA;(6):the characteristic is half angle,the symbol is 1/2,the Typ is ±11,the unit is deg.
