SAM9707

• Single-chip Sound Studio with Typical Applications including: Wavetable Synthesis, Serial MIDI In & Out, MPU-401 (UART) Game-compatible Synthesis with Adlib Interface Effects: Reverb and Chorus Directsound™, Direct3Dsound™ Accelerator with Static Buffer Support Interactive 3-D Positioning Four-channel Surround Four-band Equalizer Mixer
• High-quality Wavetable Synthesis 16-bit Samples with up to 48 kHz Sampling Rate Internal Computations on 28 Bits, DAC Support up to 20 Bits Alternate Loop, 24 dB Digital Filter for Each Voice
• Professional Effects 13 Delay Lines for Resonance-free Stereo Reverb
• Four-band Final Equalizer Allows Dramatic Sound presence Improvement
• Expandable Minimum System: SAM9707 + 512K Bytes of ROM + 32K x 8 RAM + DAC Maximum System: SAM9707 + 64M Bytes of DRAM + Codec + DAC
• High Performance RISC Structure for Sound Synthesis/Processing CISC Structure for Host Communication and Housekeeping Audio Transfer at Maximum 16-bit ISA Bus Speed Audio Transfer in Burst Mode: Removes DMA-controlled Transfer Burden
• Fully Programmable Firmware Downloaded to Memory at Power-up. Easy Software Upgrade. Chip Programming Open to Third-party Software Companies Powerful Programming and Debugging Tools: Algorithm Compiler, Sound Editor, Assembler and Source Debugger. Direct Development from PC Environment, No Special Emulator Required

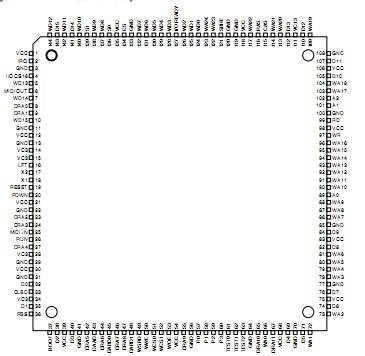

• Top Technology Single Low-frequency Crystal Operation and Built-in PLL Minimize RFI 144-lead TQFP Space-saving Package
• Pin and Function Compatible with SAM9407 with Additional Features for Professional Use: Up to Eight Channels of Audio-in Improved Digital Mix Levels and Digital Overflow Handling Improved Tuning Accuracy Additional DSP Micro-instructions and Datapath for More Efficient Audio Processing Algorithm Coding

The SAM9707 is a highly integrated sound processor studio that combines a special-ized high-performance RISC-based digital signal processor(synthesis/DSP) and ageneral-purpose 16-bit CISC-based control processor on a single chip. An on-chipmemory management unit (MMU) allows the synthesis/DSP and the control processorto share external ROM and/or SAM9707RAM memory devices. An SAM9707 intelligent peripheral I/Ointerface function handles other I/O interfaces, such as the ISA PC bus, the on-chipMIDI UART and the codec control interface, with minimum intervention from the con-trol processor.
