SAE 800

Features: · Supply voltage range 2.8 V to 18 V· Few external components (no electrolytic capacitor)· 1 tone, 2 tones, 3 tones programmable· Loudness control· Typical standby current 1 mA· Constant current output stage (no oscillation)· High-efficiency power stage· Short-circuit protection· Thermal...

product image

SAE 800 Picture
See larger image
SeekIC No. : 004484197 Detail

SAE 800: Features: · Supply voltage range 2.8 V to 18 V· Few external components (no electrolytic capacitor)· 1 tone, 2 tones, 3 tones programmable· Loudness control· Typical standby current 1 mA· Constant c...

SAE 800 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAE 800
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Supply voltage range 2.8 V to 18 V
· Few external components (no electrolytic capacitor)
· 1 tone, 2 tones, 3 tones programmable
· Loudness control
· Typical standby current 1 mA
· Constant current output stage (no oscillation)
· High-efficiency power stage
· Short-circuit protection
· Thermal shutdown

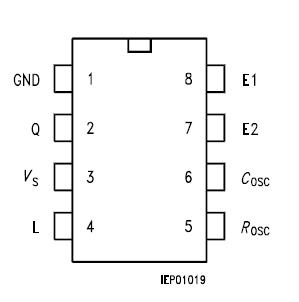

Pinout

Connection Diagram


Specifications

Parameter
Symbol
Limit Values
Unit
min.
max.
Supply voltage
VS
0.3
24
V
Input voltage at E1, E2
VE1,E2
5
24
V
Current at output Q
IQ
50
750
mA
Current at input pins E1, E2
IE1,E2
2
3
mA
Current at pin ROSC
IR
300
200
mA
Current at pin L
IL
300
200
mA
Current at pin COSC
IC
200
200
mA
Junction temperature
Tj
50
150
°C
Storage temperature
Tstg
50
150
°C
Supply voltage
VS
2.8
18
V
Junction temperature
Tj
25
125
°C
Oscillator frequency at COSC
fC
100
kHz
Current at pin ROSC
IR
200
10
mA
Current for test mode at pin L
IR
90
110
mA
Current at pin L
IL
200
10
mA
Input voltage at E1, E2
VE1,E2
4
18
V
Thermal resistance
junction-air (P-DIP-8-4)
RthJA
100
K/W
junction-air (P-DSO-8-1)
RthJA
180
K/W



Description

The SAE 800 is a single-tone, dual-tone or triple-tone gong IC designed for a very wide supply voltage range. If the oscillator SAE 800 is set to f0 = 13.2 kHz for example, the IC will issue in triple-tonemode the minor and major third e2 C sharp a, corresponding to 660 Hz 550 Hz 440 Hz, in dual-tone-mode the minor third e2 C sharp, and in single-tone-mode the tone e2 (derived from the fundamental frequency f0 ; f1 = f0 / 20, f2 = f0 / 24, f3 = f0 / 30).

When SAE 800 is not triggered, the IC is in a standby state and only draws a few mA. It comes in a compact P-DIP-8-1 or P-DSO-8-1 (SMD) package and only requires a few external components.
