SAE81C54

Features: ` 512 x 8 bit-organization` Multiplexed address and data bus` Tristate address and data lines` On-chip address register` Very low current consumption: 1 A at 5.5 V during standby` Dual chip selection` Wide supply voltage range from 2.5 V to 5.5 V` Fully compatible 5 V ± 10 %` Data retent...

product image

SAE81C54 Picture
See larger image
SeekIC No. : 004484200 Detail

SAE81C54: Features: ` 512 x 8 bit-organization` Multiplexed address and data bus` Tristate address and data lines` On-chip address register` Very low current consumption: 1 A at 5.5 V during standby` Dual chi...

SAE81C54 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAE81C54
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

` 512 x 8 bit-organization
` Multiplexed address and data bus
` Tristate address and data lines
` On-chip address register
` Very low current consumption: 1 A at 5.5 V during standby
` Dual chip selection
` Wide supply voltage range from 2.5 V to 5.5 V
` Fully compatible 5 V ± 10 %
` Data retention up to 1.0 V
` Temperature range 40 to 110


Pinout

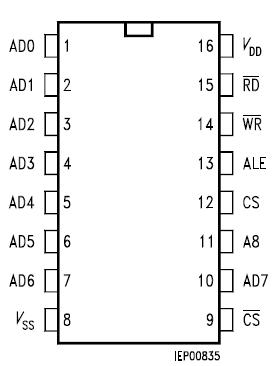

Connection Diagram


Specifications

Parameter Symbol
Limit Values
 Unit
Ambient temperature TA
- 40to110
Storage temperature range Tstg
- 55to125
Thermal resistance
system - air		 Rth SA
70
 K/W



Description

The SAE81C54 P is a static 4096-bit RAM (512 words by 8 bits) in Advanced CMOS technology. The address and data bus in the multiplex operation of SAE81C54 allows directly interfaces to 8-bit microprocessors/microcontroller families, e.g. SAB 8086, SAB 8088,SAB 8051. Due to its low power dissipation of less than 1 mA in standby mode this component requires only minimum supply current.
