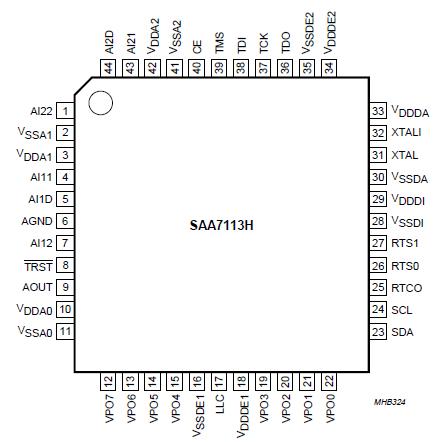

SAA7113H

` Four analog inputs, internal analog source selectors, e.g. 4 * CVBS or 2 * Y/C or (1 * Y/C and 2 * CVBS)
` Two analog preprocessing channels in differential CMOS style for best S/N-performance
` Fully programmable static gain or automatic gain control for the selected CVBS or Y/C channel
` Switchable white peak control
` Two built-in analog anti-aliasing filters
` Two 9-bit video CMOS Analog-to-Digital Converters (ADCs), digitized CVBS or Y/C-signals are available on the VPO-port via I²C-bus control
` On-chip clock generator
` Line-locked system clock frequencies
` Digital PLL for horizontal sync processing and clock generation, horizontal and vertical sync detection
` Requires only one crystal (24.576 MHz) for all standards
` Automatic detection of 50 and 60 Hz field frequency, and automatic switching between PAL and NTSC standards
` Luminance and chrominance signal processing for PAL BGHI, PAL N, combination PAL N, PAL M, NTSC M, NTSC N, NTSC 4.43, NTSC-Japan and SECAM
` User programmable luminance peaking or aperture correction
` Cross-colour reduction for NTSC by chrominance comb filtering
` PAL delay line for correcting PAL phase errors
` Brightness Contrast Saturation (BCS) and hue control on-chip
` Real-time status information output (RTCO)
` Two multi functional real-time output pins controlled by I²C-bus
` Multi-standard VBI-data slicer decoding World Standard Teletext (WST), North-American Broadcast Text System (NABTS), closed caption, Wide Screen Signalling (WSS), Video Programming System (VPS), Vertical Interval Time Code (VITC) variants (EBU/SMPTE) etc.
` Standard ITU 656 YUV 4 : 2 : 2 format (8-bit) on VPO output bus
` Enhanced ITU 656 output format on VPO output bus containing:
   active video
   raw CVBS data for INTERCAST applications (27 MHz data rate)
   decoded VBI data
` Boundary scan test circuit complies with the "IEEE Std. 1149.b1 - 1994" (ID-Code = 1 7113 02B)
` I<sup>2</sup>C-bus controlled (full read-back ability by an external controller, bit rate up to 400 kbits/s)
` Low power (<0.5 W), low voltage (3.3 V), small package (QFP44)
` Power saving mode by chip enable input
` 5 V tolerant digital I/O ports
` Detection of copy protected input signals according to the macrovision standard. Can be used to prevent unauthorized recording of pay-TV or video tape signals.

The 9-bit video input processor SAA7113H is a combination of a two-channel analog preprocessing circuit including source selection, anti-aliasing filter and ADC, an automatic clamp and gain control, a Clock Generation Circuit (CGC), a digital multi-standard decoder (PAL BGHI, PAL M, PAL N, combination PAL N, NTSC M, NTSC-Japan, NTSC N and SECAM), a brightness, contrast and saturation control circuit, a multi-standard VBI data slicer and a 27 MHz VBI data bypass; see Fig.1.

The pure 3.3 V (5 V compatible) CMOS circuit SAA7113H, analog front-end and digital video decoder, is a highly integrated circuit for desktop video applications. The decoder is based on the principle of line-locked clock decoding and is able to decode the colour of PAL, SECAM and NTSC signals into CCIR-601 compatible colour component values. The SAA7113H accepts as analog inputs CVBS or S-video (Y/C) from TV or VTR sources. The circuit is I²C-bus controlled.

The integrated SAA7113H high performance multi-standard data
slicer supports several VBI data standards:
· Teletext [WST (World Standard Teletext), CCST (Chinese teletext)] (625 lines)
· Teletext [US-WST, NABTS (North-American Broadcast Text System) and MOJI (Japanese teletext)] (525 lines)
· Closed caption [Europe, US (line 21)]
· Wide Screen Signalling (WSS)
· Video Programming Signal (VPS)
· Time codes (VITC EBU/SMPTE)
· HIGH-speed VBI data bypass for intercast application.
