SAA6579

Features: · Anti-aliasing filter (2nd order)· Integrated 57 kHz band-pass filter (8th order)· Reconstruction filter (2nd order)· Clocked comparator with automatic offset compensation· 57 kHz carrier regeneration· Synchronous demodulator for 57 kHz modulated RDS signals· Selectable 4.332/8.664 MHz ...

product image

SAA6579 Picture
See larger image
SeekIC No. : 004483952 Detail

SAA6579: Features: · Anti-aliasing filter (2nd order)· Integrated 57 kHz band-pass filter (8th order)· Reconstruction filter (2nd order)· Clocked comparator with automatic offset compensation· 57 kHz carrier...

SAA6579 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA6579
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Anti-aliasing filter (2nd order)
· Integrated 57 kHz band-pass filter (8th order)
· Reconstruction filter (2nd order)
· Clocked comparator with automatic offset compensation
· 57 kHz carrier regeneration
· Synchronous demodulator for 57 kHz modulated RDS signals
· Selectable 4.332/8.664 MHz crystal oscillator with variable dividers
· Clock regeneration with lock on biphase data rate
· Biphase symbol decoder with integrate and dump functions
· Differential decoder
· Signal quality detector
· Subcarrier output.

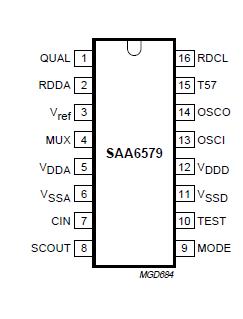

Pinout

Connection Diagram


Specifications

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
VDDA analog supply voltage (pin 5)   0 6 V
VDDD digital supply voltage (pin 12)   0 6 V
Vn voltage on all pins; grounds excluded   -0.5 VDDX + 0.5 V
Tstg storage temperature   -40 +150 °C
Tamb operating ambient temperature   -40 +85 °C
Ves electrostatic handling for all pins except
pins 9 and 10		 note 1 ±300 - V
note 2 +1500 -3000 V

Notes
1. Equivalent to discharging a 200 pF capacitor via a 0 series resistor.
2. Equivalent to discharging a 100 pF capacitor via a 1.5 k series resistor.


Description

The integrated CMOS circuit SAA6579 is an RDS demodulator. SAA6579 recovers the additional inaudible RDS information which is transmitted by FM radio broadcasting. The data signal RDDA and the clock signal RDCL are provided as outputs for further processing by a suitable decoder (microcomputer).

The operational functions of the SAA6579 are in accordance with the "CENELEC EN 50067".
