SAA1042

Features: • Drive Stages Designed for Motors: 6.0 V and 12 V: SAA1042V• 500 mA/Coil Drive Capability• BuiltIn Clamp Diodes for Overvoltage Suppression• Wide Logic Supply Voltage Range• Accepts Commands for CW/CCW and Half/Full Step Operation• Inputs Compatible w...

product image

SAA1042 Picture
See larger image
SeekIC No. : 004483866 Detail

SAA1042: Features: • Drive Stages Designed for Motors: 6.0 V and 12 V: SAA1042V• 500 mA/Coil Drive Capability• BuiltIn Clamp Diodes for Overvoltage Suppression• Wide Logic Supply Volt...

SAA1042 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
SAA1042
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Drive Stages Designed for Motors: 6.0 V and 12 V: SAA1042V
• 500 mA/Coil Drive Capability
• BuiltIn Clamp Diodes for Overvoltage Suppression
• Wide Logic Supply Voltage Range
• Accepts Commands for CW/CCW and Half/Full Step Operation
• Inputs Compatible with Popular Logic Families: MOS, TTL, DTL
• Set Input Defined Output State
• Drive Stage Bias Adaptable to Motor Power Dissipation for Optimum Efficiency


Pinout

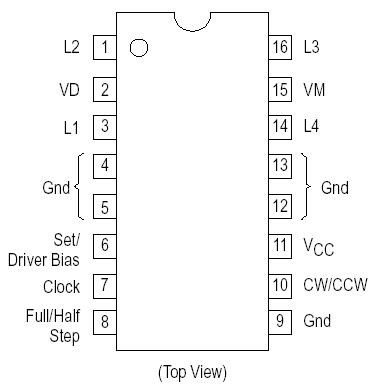

Connection Diagram


Specifications

Rating
Symbol
SAA1042V
Unit
Clamping Voltage (Pins 1, 3, 14, 16)

Over Voltage (VOV = Vclamp VM)

Supply Voltage

Switching or Motor Current/Coil
Vclamp

VOV

VCC

IM
20

6.0

20

500
V

V

V

mA
Input Voltage (Pins 7, 8, 10)
Vin clock
Vin Full/Half
Vin CW/CCW
VCC
V
Power Dissipation (Note 1)

Thermal Resistance, JunctiontoAir

Thermal Resistance, JunctiontoCase
PD

JA

JC
2.0

80

15
W

°C/W
Operating Junction Temperature Range

Storage Temperature Range
TJ

Tstg
30 to +125

65 to +150
°C

°C
NOTE: 1. The power dissipation (PD) of the circuit is given by the supply voltage (VM and VCC) and the motor current (IM), and can be determined from Figures 3 and 5. PD = Pdrive Plogic.


Description

The SAA1042 drives a twophase stepper motor in the bipolar mode. The device contains three input stages, a logic section and two output stages. The SAA1042 is contained in a 16 pin dualinline heat tab plastic package for improved heatsinking capability. The center four ground pins are connected to the copper alloy heat tab and improve thermal conduction from the die to the circuit board.
