Product Details

Description

Features:

• Low power consumption: 3.3mA typical
• Temperature compensated logarithmic Received Signal Strength Indicator (RSSI) with a dynamic range in excess of 90dB
• Two audio outputs - muted and unmuted
• Low external component count; suitable for crystal/ceramic filters
• Excellent sensitivity: 1.5V across input pins (0.22V into 50 matching network) for 12dB SINAD (Signal to Noise and Distortion ratio) at 455kHz
• SA604A meets cellular radio specifications

Application

• Cellular radio FM IF
• High performance communications receivers
• Intermediate frequency amplification and detection up to 25MHz
• RF level meter
• Spectrum analyzer
• Instrumentation
• FSK and ASK data receivers

Pinout

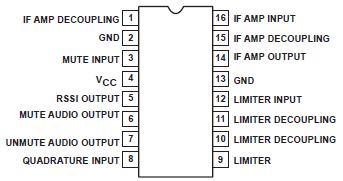

Connection Diagram

Specifications

SYMBOL	PARAMETER	RATING	UNITS
V_CC	Single supply voltage	9	V
T_STG	Storage temperature range	65 to +150	°C
T_A	Operating ambient temperature range SA604A	40 to +85	°C
_JA	Thermal impedance D package	90	°C/W

Description

The SA604A is an improved monolithic low-power FM IF system incorporating two limiting intermediate frequency amplifiers, quadrature detector, muting, logarithmic received signal strength indicator, and voltage regulator. The SA604A features higher IF bandwidth (25MHz) and temperature compensated RSSI and limiters permitting higher performance application compared with the SA604. The SA604A is available in a 16-lead SO (surface-mounted miniature) package.
