Product Details

Description



Features:

· Two current sensor inputs
· Dual pulse and energy direction outputs
· No external crystal or resonator required
· Performs bi-directional power and energy measurement
· Meets the IEC 521/1036 Specification for Class 1 AC Watt hour meters
· Protected against ESD
· Total power consumption rating below 25mW
· Adaptable to different types of sensors
· Operates over a wide temperature range
· Precision voltage reference on-chip


Pinout

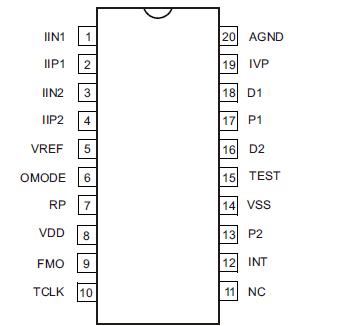

Connection Diagram


Specifications

Parameter
Symbol
Min
Max
Unit
Supply Voltage
VDD-VSS
-0.3
6.0
V
Current on any pin
IPIN
-150
+150
mA
Storage Temperature
TSTG
-40
+125
°C
Operating Temperature
To
-25
+85
°C
*Stresses above those listed under "Absolute Maximum Ratings" may cause permanent damage to the device. This is a stress rating only. Functional operation of the device at these or any other condition above those indicated in the operational sections of this specification, is not implied. Exposure to Absolute Maximum Ratings for extended periods may affect device reliability.


Description

The SAMES SA2007H is a single phase bidirectional dual element energy metering integrated circuit. It provides a simple analog interface to a micro-controller and is specifically designed for meter manufacturers to have full control over the meter functionality.

The SA2007H has two current sensor inputs. The power consumption on both inputs are continuously measured. A typical application would be to monitor Live and Neutral lines for tamper detection.

For each current sensor input the SA2007H integrated circuit has a corresponding pulse output, each generating a pulse rate with a frequency proportional to the power consumption measured on the specific channel.

The SA2007H performs active power measurement and takes the power factor into account. Energy consumption can be determined by the power easurement being integrated over time. The energy flow direction information is also available for each channel.
