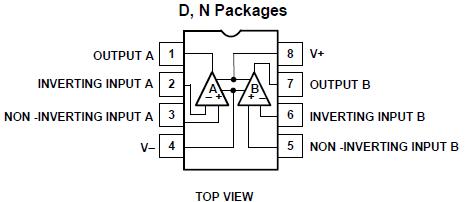

Features: • Internal frequency compensation• Short-circuit protection• Excellent temperature stability• High input voltage range• No latch-up• 1558/1458 are 2 op amps in space of one 741 packagePinoutSpecifications SYMBOL PARAMETER RATING UNIT ...
SA1458: Features: • Internal frequency compensation• Short-circuit protection• Excellent temperature stability• High input voltage range• No latch-up• 1558/1458 are 2 op...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
SYMBOL |
PARAMETER |
RATING |
UNIT |
VS |
Supply voltage MC1458 SA1458 MC1558 |
±18 |
V |
TJ |
Junction temperature |
+150 |
°C |
PD MAX |
Maximum power dissipation, TA=25°C (still-air)1 N package D package |
1160 780 |
mW mW |
VDIFF |
Differential input voltage |
±30 |
V |
VIN |
Input voltage2 |
±15 |
V |
Output short-circuit duration |
Continuous |
||
TA |
Operating ambient temperature range MC1458 SA1458 MC1558 |
0 to +70 -40 to +85 -55 to +125 |
°C °C °C |
TSTG |
Storage temperature range |
-65 to +150 |
°C |
TSOLD |
Lead soldering temperature (10sec max) |
300 |
°C |
The MC1458/SA1458/MC1558 is a high-performance operational amplifier with high open-loop gain, internal compensation, high common-mode range and exceptional emperature stability. The MC1458 is short-circuit protected.
The MC1458/SA1458/MC1558 consists of a pair of 741 operational amplifiers on a single chip.
