Product Details

Description

Features:

· Equipped with all stages of a mono receiver from antenna to audio output.
·Mute Circuit
· Search tuning with a single varicap diode
· Mechanical tuning with integrating AFC
·AM application supported
· Power supply polarity protection
·Power supply voltage down to 1.8V

Application

·Mechanical tuning: This is possible with or without integrated AFC circuit
·Electrical tuning: This is realized by one directional(band-up) search tuning facility, including RESET to the lower-band limit.

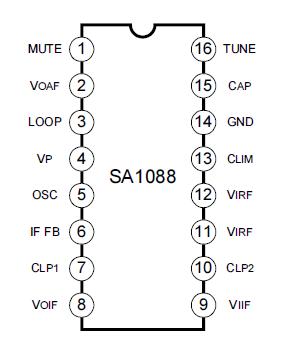

Pinout

Connection Diagram

Specifications

Characteristic	Symbol	Value	Unit
Supply Voltage	V_p	5	V
Operating Temperature	T_amb	-10 ~ +70	°C
Storage Temperature	T_stg	-55 ~ +150	°C

Description

The SA1088 is a bipolar integrated circuit for use in mono portable and pocket radios. SA1088 is used when a minimum of perpheral components (of small imensions and low costs) is important. The circuit contains a frequency-locked-loop(FLL) system with an intermediate frequency(IF) of about 70kHz. Selectivity is achieved by active RC-filters. De-tuning related to the IF and too weak input signal is suppressed by the mute circuit.
