S9518

Temperature Under Bias ..................-55°C to +125°C
Storage Temperature ................... -65°C to +150°C
Voltage on pins with reference to GND:
Analog Inputs ........................-0.5V to V_DD+.5V
Digital Inputs  ........................-0.5V to V_DD+.5V
Analog Outputs....................... -0.5V to V_DD+.5V
Digital Outputs  .......................-0.5V to V_DD+.5V
Lead Solder Temperature (10 secs) ..................300°C

*COMMENT
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions outside those listed in the operation sections of this specification is not implied. Exposure to
any absolute maximum rating for extended periods may affect device performance and reliability.

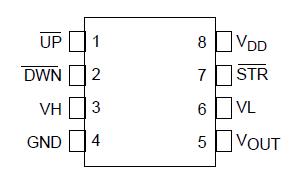

The S9518 DACPOT trimmer is an 8-bit nonvolatile DAC designed to replace mechanical potentiometers. The S9518 includes a unity-gain amplifier to buffer the DAC output and enables VOUT to swing from rail to rail. The DACPOT trimmer operates over a supply voltage range of 2.7V to 5.5V.

The S9518's simple push button input provides an ideal interface for operator adjusted equipment. This interface allows for quick and easy adjustment of even the most sophisticated systems.

The S9518 is a pin-compatible performance upgrade for other industry nonvolatile potentiometers. The S9518 offers double the resolution of these devices and provides 'clickless' transitions of VOUT.
