Features:

• Four 8-Bit DACS
  Differential Non-linearity - ±0.5LSB max
  Integral Non-Linearity - ±1LSB max
• Each DAC has Independent Reference Inputs
  Output Buffer Amplifiers Swing Rail-to-Rail
  Ground to VDD Reference Input Range
• Each DAC's Digital Input Data Maintained in Nonvolatile EEPROM
• Power-On Reset Reloads Registers with Nonvolatile Data
• Simple Serial Interface for Reading and Writing DAC values, SPI™ and QSPI™ compatible.
• Fully operational from 2.7V to 5.5V
• Low Power: <1mW @ 2.7V


Pinout

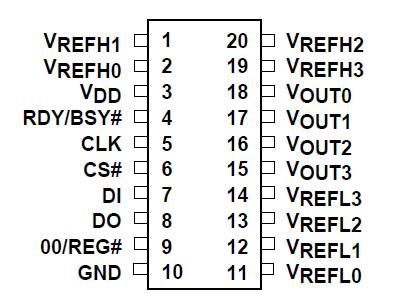

Connection Diagram


Specifications

VDD to GND ........................-0.5V to +7V
Digital Inputs to GND................ -0.5V to VDD+0.5V
Analog Inputs to GND  ............... -0.5V to VDD+0.5V
Digital Outputs to GND ...............-0.5V to VDD+0.5V
Analog Outputs to GND   ..............-0.5V to VDD+0.5V
Temperature Under Bias ..............-55°C to +125°C
Storage Temperature ............... -65°C to +150°C
Lead Soldering (10 Sec Max)  ................. 300°C


Description

The S9408 DACPOT™ is a serial input, voltage output, quad 8-bit digital to analog converter. The S9408 operates from a single +2.7V to +5.5V supply. Internal precision buffers swing rail-to-rail and the reference input range includes both ground and the positive supply.

The S9408 integrates four 8-bit DACs and their associated circuits which include an enhanced unity-gain operational amplifier output, an 8-bit data latch, an 8-bit nonvolatile register, and an industry-standard serial interface for reading and writing data to the DACs' data latches and registers. The DACs are independently programmable and each has its own electrically isolated Vreference inputs.
