Product Details

Description



Features:

• 3.3V power supply
• LVTTL compatible with multiplexed address
• Dual banks operation
• MRS cycle with address key programs
   -. CAS Latency ( 2 & 3)
   -. Burst Length (1, 2, 4, 8 & full page)
   -. Burst Type (Sequential & Interleave)
• All inputs are sampled at the positive going edge of the system clock
• Burst Read Single-bit Write operation
• DQM for masking
• Auto & self refresh
• 15.6us refresh duty cycle (1K/16ms)


Pinout

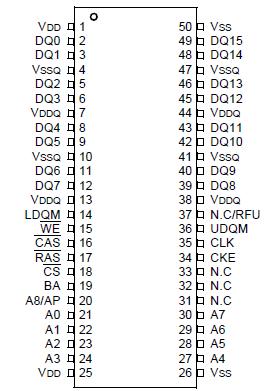

Connection Diagram


Specifications

Parameter
Symbol
Value
Unit
Voltage on any pin relative to Vss
VIN, VOUT
-1.0 ~ 4.6
V
Voltage on VDD supply relative to Vss
VDD, VDDQ
-1.0 ~ 4.6
V
Storage temperature
TSTG
-55 ~ +150
°C
Power dissipation
PD
1
W
Short circuit current
IOS
50
mA
Note :
Permanent device damage may occur if ABSOLUTE MAXIMUM RATINGS are exceeded.
Functional operation should be restricted to recommended operating condition.
Exposure to higher than recommended voltage for extended periods of time could affect device reliability.


Description

The S8S3122X16 is 4,194,304 bits synchronous high data rate Dynamic RAM organized as 2 x131,072 words by 16 bits, fabricated with SAMSUNG¢s high performance CMOS technology. Synchronous design of S8S3122X16 allows precise cycle control with the use of system clock I/O transactions are possible on every clock cycle. Range of operating frequencies, programmable burst length and programmable latencies allow the same device to be useful for a variety of high bandwidth, high performance memory system applications.
