S7DB-12B

Features: • Nonisolated• Compact, low profile surface mount package• Fixed frequency• High efficiency means less power dissipation• Excellent thermal performance• Optimized for cost• Remote on/off• Undervoltage lockout (UVLO)• Over current and ...

product image

S7DB-12B Picture
See larger image
SeekIC No. : 004483170 Detail

S7DB-12B: Features: • Nonisolated• Compact, low profile surface mount package• Fixed frequency• High efficiency means less power dissipation• Excellent thermal performance•...

S7DB-12B Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S7DB-12B
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Nonisolated
• Compact, low profile surface mount package
• Fixed frequency
• High efficiency means less power dissipation
• Excellent thermal performance
• Optimized for cost
• Remote on/off
• Undervoltage lockout (UVLO)
• Over current and short circuit protection
• Remote sense


Application

• Distributed power architectures
• Data networking equipment
• Telecommunications
• Computers and peripherals


Pinout

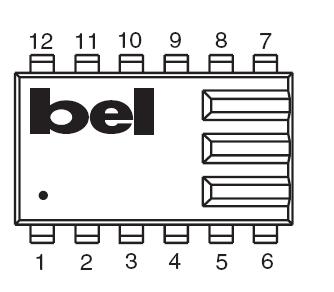

Connection Diagram


Specifications

Parameter Symbol Min Typical Max Unit
Continuous Input Voltage Vin -0.3   6 V
Output Enable Terminal Voltage Vouten -0.3   6 V
Ambient Temperature Tamb -40   85 °C
Storage Temperature Tstor -55   100 °C
Note: Use beyond the maximum ratings may cause a reliability degradation of the DC/DC
          converter or may permanently damage the device.


Description

The Bel S7DB-12B modules are a series of non-isolated, step down DC/DC power converters that operate from a nominal 5V source. These S7DB-12B converters are available in a range of output voltages from 1.2V to 3.3V. They are packaged in a compact, low profile, surface mount DIP package for ease of layout and space savings. 12A maximum output is also provided. Standard features include remote on/off, remote sense, over current and short circuit protection, UVLO and output voltage adjust.

These S7DB-12B products may be used almost anywhere low voltage silicon is employed and a 5V source is available. Typical applications include file servers, routers, line cards and other computing and communications equipment.
