S5T3170

Features: • Detects all 16 standard tones.• Low power consumption: 15mW (Typ)• Single power supply: 5V• Uses inexpensive 3.58MHz crystal• Three state outputs for microprocessor interface• Good quality and performance for using in exchange system• Power dow...

product image

S5T3170 Picture
See larger image
SeekIC No. : 004482710 Detail

S5T3170: Features: • Detects all 16 standard tones.• Low power consumption: 15mW (Typ)• Single power supply: 5V• Uses inexpensive 3.58MHz crystal• Three state outputs for microp...

S5T3170 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5T3170
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Detects all 16 standard tones.
• Low power consumption: 15mW (Typ)
• Single power supply: 5V
• Uses inexpensive 3.58MHz crystal
• Three state outputs for microprocessor interface
• Good quality and performance for using in exchange system
• Power down mode/input inhibit


Application

• PABX
• Key Phone System
• Central Office
• Answering Phone
• Paging Systems
• Home Automation System
• Remote Control
• Mobile Radio
• Credit Card Systems
• Remote Data Entry


Pinout

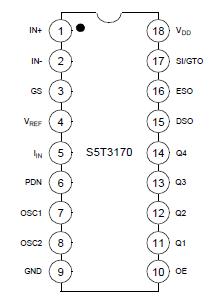

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
Power Supply Voltage
VDD
6
V
Analog Input Voltage Range
VI (A)
- 0.3 - VDD + 0.3
V
Digital Input Voltage Range
VI (D)
- 0.3 - VDD + 0.3
V
Output Voltage Range
VO
- 0.3 - VDD + 0.3
V
Current On Any Pin
II
10
V
Operating Temperature
TOPR
- 40 - + 85
mA
Storage Temperature
TSTG
- 60 - + 150




Description

The S5T3170 is a complete Dual Tone Multiple Frequency (DTMF) receiver that is fabricated by low power CMOS and the Switched- Capacitor Filter technology. This LSI consists of band split filters, which separates counting section which verifies the frequency and duration of the received tones before passing the corresponding code to the output bus. It decodes all 16 DTMF tone pairs into a 4bits digital code. The externally required components are minimized by on chip provision of a differential input AMP, clock oscillator and latched three state interface. The on chip clock generator requires only a low cost TV crystal as an external component
