S5L1454A

Features: `MICOM - 8bit parallel interface - Built-in direct memory access (DVD/CD)`PLL - Built-in wide capture range (± 50%) PLL - Built-in EFM slice - Built-in F/V converter for RF EQ adjustment of DAC method - Charge-pump PWM control method - FD/PD gain adjustment - Built-in wide range VCO(20 -...

product image

S5L1454A Picture
See larger image
SeekIC No. : 004482680 Detail

S5L1454A: Features: `MICOM - 8bit parallel interface - Built-in direct memory access (DVD/CD)`PLL - Built-in wide capture range (± 50%) PLL - Built-in EFM slice - Built-in F/V converter for RF EQ adjustment o...

S5L1454A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5L1454A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`MICOM
   - 8bit parallel interface
   - Built-in direct memory access (DVD/CD)
`PLL
   - Built-in wide capture range (± 50%) PLL
   - Built-in EFM slice
   - Built-in F/V converter for RF EQ adjustment of DAC method
   - Charge-pump PWM control method
   - FD/PD gain adjustment
   - Built-in wide range VCO(20 - 100MHz)
`SERVO
   - CD/CD-ROM 1,2x, DVD 1x compatible digital servo IC.
   - complete automatic adjusting FEATURE.    (Focus/Tracking Loop's Input Gain, Offset, Balance, Loop Gain)
   - Each servo loop has a digital filter, reducing the number of external parts.
   - Built-in AGC FEATURE that responds optimally to various disc types.
   - High speed moving control(built-in SLED FG Encoder).
   - Built-in speed controlling search algorithm.
   - Built-in 10bit A/D Converter and 10bit D/A Converter.
   - Various filter characteristics and internal constants can be set from MICOM.
   - Built-in defect and shock response.
   - Built-in 16bit track counter.
   - Chooses the best method from multiple search algorithm.
   - Servo operation improved by widening the range through high speed sampling of 151.2kHz


Pinout

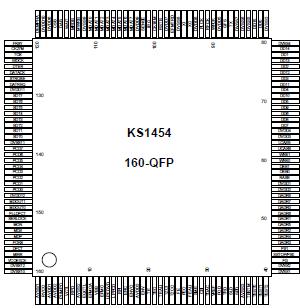

Connection Diagram


Description

S5L1454A is a DVDP (Digital Video Disc Player) 1-chip LSI which includes the digital servo and DSP(Digital Signal Processor) features.

S5L1454A performs the digital servo function, which controls disc speed and pick-up location as it retrieves signals from the disc (CD,VCD,DVD). Servo block contains the wide capture PLL.

S5L1454A receives the EFM signal as an input and performs buffer control for demodulated data output while EFM demodulation and error corrections are being carried out
