S5H1420

Features: · Single chip decoder (ADC/QPSK/FEC).· Flexible Interface (I2C, MPEG2).· DiSEqC 1.x or 2.0 specification support.· Satellite dish control.· DC offset cancellation.· Automatic gain control· Nyquist filter: 0.35 for DVB-S, 0.2 for DSS.· Fully digital synchronization. Symbol timing recovery...

product image

S5H1420 Picture
See larger image
SeekIC No. : 004482669 Detail

S5H1420: Features: · Single chip decoder (ADC/QPSK/FEC).· Flexible Interface (I2C, MPEG2).· DiSEqC 1.x or 2.0 specification support.· Satellite dish control.· DC offset cancellation.· Automatic gain control·...

S5H1420 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5H1420
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Single chip decoder (ADC/QPSK/FEC).
· Flexible Interface (I2C, MPEG2).
· DiSEqC 1.x or 2.0 specification support.
· Satellite dish control.
· DC offset cancellation.
· Automatic gain control
· Nyquist filter: 0.35 for DVB-S, 0.2 for DSS.
· Fully digital synchronization.
    Symbol timing recovery range up to ± 50000 ppm.
    Carrier recovery range up to ±12.5% of symbol rate.
· Carrier offset cancellation up to ±1/2sampling frequency
· Modulation rate from 1 to 87Mbps(1 ~ 50 Msps)
· QPSK demodulation quality estimation
· Viterbi decoding quality estimation.
    Viterbi Input and output BER measurement.
    Support depuncturing code rate from 1/2 to 7/8.
· Convolutional deinterleaver and Reed-Solomon decoder
· Automatic byte and frame synchronization
· Automatic spectral inversion ambiguity resolution.
· I2C repeater for RF part
· Power down control
· Low power CMOS technology
· 3.3V Single power using diode for 2.5V
· Compact size package: 64LQFP-1010


Application

 ·DVB-S Receiver and STB
 ·Digital satellite TV
 ·PCI satellite Card


Pinout

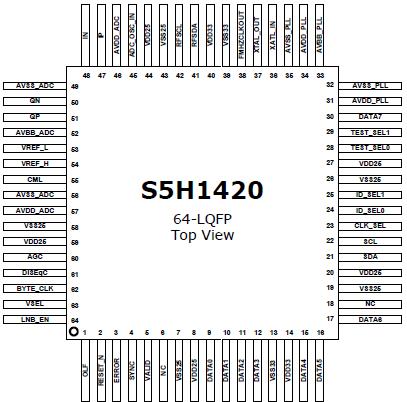

Connection Diagram


Specifications

Symbol Parameter
Range
Unit
VCC DC Supply Voltage
-0.3 to 4.6
V
VIN 3.3V Input Voltage
-0.3 to VDD+0.3
V
IIN DC 3.3V Input Current
+/- 10
mA
Tstg Storage Temperature
-40 to +125
Topr Operation Temperature
0 to +70
