S5C7320X01

Features: • NTSC/PAL, 360H/510H/720H/760H CCD compatible• Able to detect and correct 64 CCD white defects• Built-in digital clamp feature• 3-line processing using 2 line memories• Luminance signal process• Chrominance signal process• Color difference signa...

product image

S5C7320X01 Picture
See larger image
SeekIC No. : 004482643 Detail

S5C7320X01: Features: • NTSC/PAL, 360H/510H/720H/760H CCD compatible• Able to detect and correct 64 CCD white defects• Built-in digital clamp feature• 3-line processing using 2 line memo...

S5C7320X01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S5C7320X01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• NTSC/PAL, 360H/510H/720H/760H CCD compatible
• Able to detect and correct 64 CCD white defects
• Built-in digital clamp feature
• 3-line processing using 2 line memories
• Luminance signal process
• Chrominance signal process
• Color difference signal modulation using quadrature subcarrier generation (DTO) method
• Built-in timing and sync signal generator
• External synchronization compatible (Line-lock, H-reset/V-reset, H-PLL/V-reset)
• Built-in ability to determine if in external synchronization mode
• Serial MICOM interface
• Built-in algorithm for AE/AWB
• MICOMless (stand-alone) full AE/AWB
• Partial linear approximation method's g compensation feature for R, G, B and luminance
• Built-in 2CH DAC for combined Y/C analog output
• EEPROM interface for register setting without MICOM
• Built-in EVR interface for controlling CDS/AGC, and CCD


Application

• Camcorder
• Surveillance camera
• Multimedia PC (MMPC) camera


Pinout

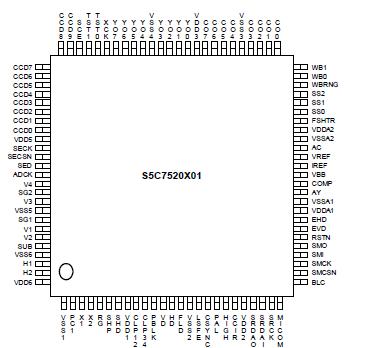

Connection Diagram


Specifications

Item
Symbol
Value
Unit
Remark
DC supply voltage (digital)
VDD
-0.3 - 3.8
V
-
DC supply voltage (analog)
VDDA
-0.3 - 3.8
V
DAC power
DC input voltage
VIN
-0.3 - VDD + 0.3
-
Storage temperature
TSTG
-40 - 125
V
-
Latch-up current
ILU
±100
mA
-



Description

S5C7320X01 receives digital data from CCD-using video camera systems such as MMPC and surveillance cameras, and outputs combined video signals. It also runs algorithms for AE/AWB and transmits them to MICOM, or carries out AE/AWB independently. S5C7320X01 has the following features;
