S494

Features: • Uncommitted output transistors capable of 200mA source or sink• Internal protection from double pulsing of out-puts with narrow pulse widths or with supply voltages bellows specified limits• Easily synchronized to other circuits• Dead time control comparatorR...

product image

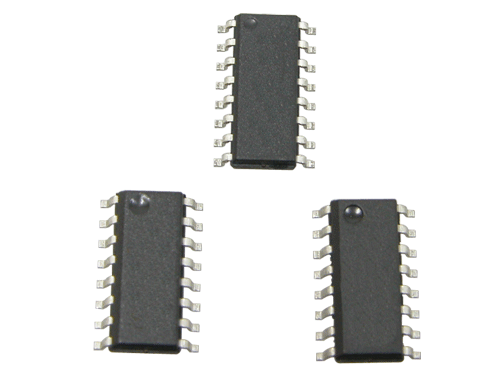

S494 Picture
See larger image
SeekIC No. : 004482436 Detail

S494: Features: • Uncommitted output transistors capable of 200mA source or sink• Internal protection from double pulsing of out-puts with narrow pulse widths or with supply voltages bellows s...

S494 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S494
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Uncommitted output transistors capable of 200mA source or sink
• Internal protection from double pulsing of out-puts with narrow pulse widths or with supply voltages bellows specified limits
• Easily synchronized to other circuits
• Dead time control comparator
• Output control selects single-ended or push-pull operation




Pinout






Specifications


Characteristic
Symbol
Ratings
Unit
supply voltage
VCC
42
V
Voltage From Any Pin to Ground
(except pin 8 and pin 11)
VIN
VCC+0.3
V
Output Collector Voltage
VC1, VC2
42
V
Peak Collector Current
IC1, IC2
250
mA
Power Dissipation
PD
1500
mW
Operating Temperature
Topr
-40 ~ 85
Storage Temperature
Tstg
-65 ~ 150






Description

The S494 is a monolithic integrated circuit which includes all the necessary building blocks for the design of pulse width modulate(PWM) switching power supplies, including push-pull, bridge and series configuration. The device can operate at switching frequencies between 1KHz and 300KHz and output voltage up to 40V.
