S3P84A4

Features:

CPU
• SAM88RC CPU core

Memory
• 784-byte internal register file
• 4-Kbyte internal program memory

External Interface
• 64K-byte external data memory
• 64K-byte external program memory area (ROMless)
• 60K-byte external program memory and 4K-byte internal program memory
• Automatic wait control function by software.
• Can be used as a general input/output port
• 8-bit resolution four channels

8-bit Timers
• Two 8-bit timers with interval timer mode (Timer A and B)

16-bit Timer/Counters
• Two programmable 16-bit timer/counters
• Interval, or event counter mode operation
• 16-bit capture and 8-bit PWM mode
• Internal or external clock source

Basic Timer (Watchdog Timer)
• Overflow signal makes a system reset
• 8-bit timer with interval timer mode

General I/O Ports
• Three 8-bit general I/O ports (port 0, 1, 2)
• One 5-bit general I/O port (port 3)
• Port 2 can drive LED directly

Interrupts
• Two edge-driven external interrupts
• Two level-driven external interrupts
• Fast interrupt mode processing

PWM
• Four output channels (PWM0, PWM1, TCPWM, TDPWM)
• 8-bit resolution with a 4-bit prescaler (PWM0, PWM1)
• From 8-bit counter (Timer C/D) (TCPWM, TDPWM)

Embedded chip selection
• To reduce interface glue logic, chip selection logic is embedded (256 byte address unit)

Voltage level detector
• To prevent MCU from malfunctioning in an unstable power level, a voltage level detector circuit is inserted

Operating Voltage Range
• 4.5 V to 5.5 volts (@ 30 MHz)

Operating Temperature Range
• 40   to + 85

Package Types

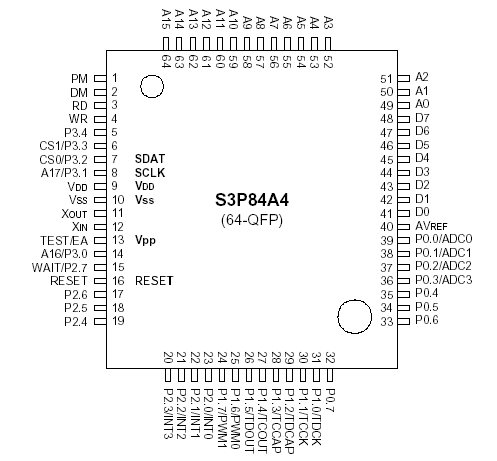

• 64-pin QFP

Operating frequency
• 30 MHz (4.5 V to 5.5 V)

Application




Specifications

Parameter	Symbol	Conditions	Rating	Unit
Supply voltage	VDD		0.3 to +6.5	V
Input voltage	VI		0.3 to VDD + 0.3
Output voltage	VO		-0.3 to VDD + 0.3	V
Output current high	IOH	One I/O pin active	18	mA
		All I/O pins active	60
Output current low	IOL	One I/O pin active	+30	mA
		Total pin current for ports	+100
Operating temperature	TA		40to + 85
Storage temperature	TSTG		65 to + 150

Description

The S3C84A4/S3P84A4 single-chip microcontroller is fabricated using a highly advanced CMOS process. Its design is based on the powerful SAM88RC CPU core. Stop and Idle power-down modes were implemented to reduce power consumption. The size of the internal register file is logically expanded, increasing the addressable on-chip register space to 784 bytes. A flexible yet sophisticated external interface is used to access up to 64-Kbytes of program and data memory. The S3C84A4/S3P84A4 is a versatile microcontroller that is ideal for use in a wide range of general-purpose applications such as CD-ROM/DVD-ROM drives.

Using the SAM88RC modular design approach, the following peripherals were integrated with the SAM88RC CPU core, S3P84A4 specifications:

  - Three configurable 8-bit general I/O ports
  - One 5-bit general I/O ports
  - Two 8-bit timers with interval timer
  - Two 16-bit timers/counters with PWM operating modes 8-bit or capture modes
  - Voltage level detector circuit embedded.
  - Two embedded chip selection pins (CS0CS1) or normal I/O ports
  - Two programmable 8-bit PWM modules with corresponding output pins
  - A/D converter with 4 selectable input pins
