S3P7048

Features: Memory` 512* 4-bit RAM` 4096* 8-bit ROM: S3C7044` 8192* 8-bit ROM: S3C704836 I/O Pins` Input only: 4 pins` I/O: 24 pins` N-channel open-drain I/O: 8 pinsMemory-Mapped I/O Structure` Data memory bank 158-Bit Basic Timer` 4 interval timer functionsTwo 8-Bit Timer/Counters` Programmable int...

product image

S3P7048 Picture
See larger image
SeekIC No. : 004482245 Detail

S3P7048: Features: Memory` 512* 4-bit RAM` 4096* 8-bit ROM: S3C7044` 8192* 8-bit ROM: S3C704836 I/O Pins` Input only: 4 pins` I/O: 24 pins` N-channel open-drain I/O: 8 pinsMemory-Mapped I/O Structure` Data m...

S3P7048 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S3P7048
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

Memory
` 512  *  4-bit RAM
` 4096  *  8-bit ROM: S3C7044
` 8192  *  8-bit ROM: S3C7048

36 I/O Pins
` Input only: 4 pins
` I/O: 24 pins
` N-channel open-drain I/O: 8 pins

Memory-Mapped I/O Structure
` Data memory bank 15

8-Bit Basic Timer
` 4 interval timer functions

Two 8-Bit Timer/Counters
` Programmable interval timer
` External event counter function
` Timer/counters clock outputs to TCLO0 and TCLO1 pins

Watch Timer
` Time interval generation: 0.5 s, 3.9 ms at 4.19 MHz
` 4 frequency outputs to the BUZ pin

8-Bit Serial I/O Interface
` 8-bit transmit/receive mode
` 8-bit receive mode
` LSB-first or MSB-first transmission selectable

Bit Sequential Carrier
` Supports 16-bit serial data transfer in arbitrary format

Interrupts
` 3 external interrupt vectors
` 4 internal interrupt vectors
` 2 quasi-interrupts

Power-Down Modes
` Idle: Only CPU clock stops
` Stop: System clock stops

Oscillation Sources
` Crystal or Ceramic for system clock
` Oscillation frequency : 0.4 6.0MHz
` CPU clock divider circuit (by 4. 8, or 64)

Instruction Execution Times
` 0.95, 1.91, 15.3 ms at 4.19 MHz
` 0.67, 1.33, 10.7 ms at 6.0 MHz

Operating Temperature
` - 40 to 85

Operating Voltage Range
`  1.8 V to 5.5 V (Main)
` 2.0 V to 5.5 V (OTP)

Package Types
` 42-pin SDIP, 44-pin QFP


Application

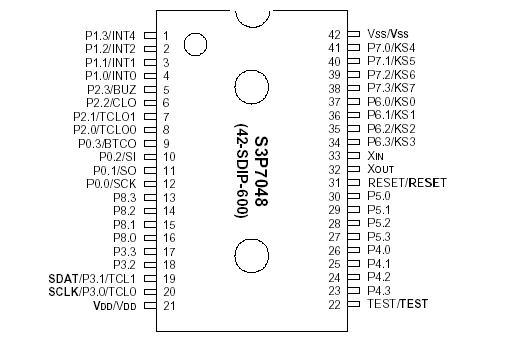

Connection Diagram




Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VI1
All I/O ports except 4 and 5
0.3 to VDD + 0.3
V
Output voltage
VO
-
-0.3 to VDD + 0.3
V
Output current high
IOH
One I/O port active
-15
mA
All I/O ports active
30
Output current low
IOL
 One I/O port active
+30(Peak value)
mA
+15(note)
All I/O ports, total + 100 (Peak value)
+ 60 (note)
Operating temperature
TA
-
40to + 85
Storage temperature
TSTG
-
65 to + 150



Description

The S3C7044/C7048/S3P7048 single-chip CMOS microcontroller has been designed for very high-performance using Samsung's newest 4-bit CPU core, SAM47 (Samsung Arrangeable Microcontrollers).

The S3P7048 is the microcontroller which has 8K-bytes one-time-programmable ROM and the functions are same to S3C7044/C7048/S3P7048.

With two 8-bit timer/counters, an 8-bit serial I/O interface, and eight software n-channel open-drain I/O pins, the S3C7044/C7048/S3P7048 offers an excellent design solution for a wide variety of general-purpose applications.

Up to 36 pins of the 42-pin SDIP or 44-pin QFP package can be dedicated to I/O. Seven vectored interrupts provide fast response to internal and external events.

In addition, the S3C7044/C7048/S3P7048's advanced CMOS technology provides for low power consumption and a wide operating voltage range.
