Features:

CPU
• SAM88 RC CPU core

Memory
• Program Memory (ROM)
   - 4K * 8 bits program memory
• Data Memory (RAM)
   - 128 * 8 bits data memory

Instruction Set
• 78 instructions
• Idle and stop instructions added for power-down modes

15 I/O Pins
• 15 normal I/O pins
• Bit programmable ports

Interrupts
• 6 interrupt levels and 6 interrupt sources

8-Bit Basic Timer
• Watchdog timer function
• 4 kinds of clock source

8-Bit Timer/Counter 0
• Programmable 8-bit internal timer
• External event counter function

8-Bit High-Speed PWM
• 8-bit PWM 1-ch
• 6-bit base +2-bit extension

Oscillation Sources
• Crystal, ceramic, or RC for main clock
• Main clock frequency: 0.4 MHz 10 MHz

Two Power-Down Modes
• Idle: only CPU clock stops
• Stop: selected system clock and CPU clock stop

Power Consumption
• RUM Mode: 4mA at 10MHz, 5V
• Stop Mode: 100uA at 5V

Instruction Execution Times
• 400nS at 10 MHz fosc(minimum)

Operating Temperature Range
• 25 to +85

Operating Voltage Range
• 2.4 V to 5.5 V at 0.4 4.2MHz
• 2.7 V to 5.5 V at 0.4 10MHz

Package Type
• 20-DIP-300A, 20-SOP-375
• 16-DIP-300A, 16-SOP-375

IVC
• Internal Voltage Converter for 5V operation



Pinout

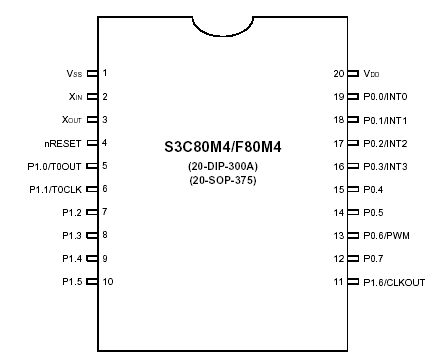

Connection Diagram


Specifications

Parameter
Symbol
Conditions
Rating
Unit
Supply voltage
VDD
-
0.3 to +6.5
V
Input voltage
VI
Ports 01
0.3 to VDD + 0.3
Output voltage
VO
-
-0.3 to VDD + 0.3
Output current high
IOH
One I/O pin active
-15
mA
All I/O pins active
-60
Output current low
IOL
One I/O pin active
+ 30(Peak value)
Total pin current for ports
+ 100(Peak value)
Operating temperature
TA
-
25 to + 85
Storage temperature
TSTG
-
65 to + 150




Description

The S3C80M4/S3F80M4 single-chip CMOS microcontroller is fabricated using the highly advanced CMOS process, Its design is based on the SAM88RC CPU core. Stop and Idle (Power-down) modes were implemented to reduce power consumption.

The S3C80M4 is a microcontroller with a 4K-byte mask-programmable ROM embedded.
The S3F80M4 is a microcontroller with a 4K-byte Flash ROM embedded.

Using a proven modular design approach, Samsung engineers have successfully developed the S3C80M4/S3F80M4 by integrating the following peripheral modules with the powerful SAM8 core:

  - Two programmable I/O ports, including one 8-bit port, one 7-bit port (Total 15 pins).
  - Four bit-programmable pins for external interrupts.
  - One 8-bit basic timer for oscillation stabilization and watchdog functions (system reset).
  - One 8-bit timer/counter.
  - 8-bit high-speed PWM.
