S358P

Features: • Input common mode voltage range includes ground.• Internally frequency compensated for unity gain.• Large DC voltage gain : 100dB• Wide bandwidth for unity gain : 1 MHz• Very low power consumption.• Wide supply voltage range : Single : 3V ~ 30V, Dual...

product image

S358P Picture
See larger image
SeekIC No. : 004482017 Detail

S358P: Features: • Input common mode voltage range includes ground.• Internally frequency compensated for unity gain.• Large DC voltage gain : 100dB• Wide bandwidth for unity gain :...

S358P Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S358P
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/9/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Input common mode voltage range includes ground.
• Internally frequency compensated for unity gain.
• Large DC voltage gain : 100dB
• Wide bandwidth for unity gain : 1 MHz
• Very low power consumption.
• Wide supply voltage range : Single : 3V ~ 30V, Dual : ±1.5 ~ ±15V




Application

• Transducer amplifier.
• DC gain blocks.
• Conventional operational amplifiers.




Pinout

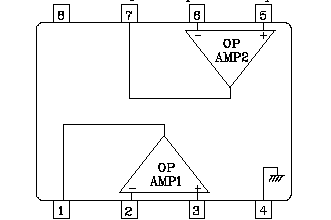

Connection Diagram




Specifications

Characteristic
Symbol
Ratings
Unit
Supply voltage
VCC
36 or ±18
V
Differential input voltage
VIND
32
V
Input voltage
VIN
-0.3 ~ +32
V
Power Dissipation
PD
300
mW
Operating temperature
Topr
-40 ~ +85
Storage temperature
Tstg
-55~ 150
