S3019

The S3019 SONET/SDH transceiver chip is a fully integrated serialization/deserialization SONET OC-12 (622.08 Mbit/s) and OC-3 (155.52 Mbps) interface device. The chip performs all necessary serial-to-parallel and parallel-to-serial functions in conformance with SONET/SDH transmission standards. The S3019 is suitable for SONET-based ATM applications. Figure 1 shows a typical network application.

On-chip clock synthesis of S3019 is performed by the highfrequency phase-locked loop on the S3019 transceiver chip allowing the use of a slower external transmit clock reference. Clock recovery is performed on the device by synchronizing its on-chip VCO directly to the incoming data stream. The S3019 also performs SONET/SDH frame detection. The chip can be used with a 19.44, 38.88, 51.84 or 77.76 MHz reference clock, in support of existing system clocking schemes.

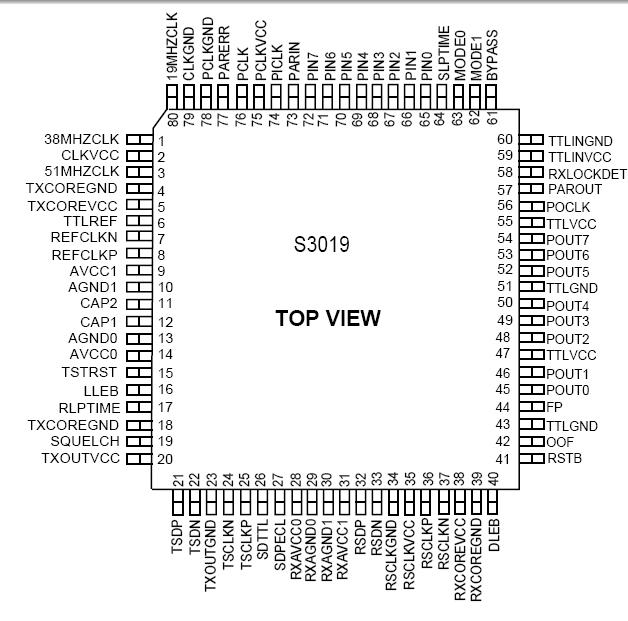

The low jitter LVPECL interface guarantees compliance with the bit-error rate requirements of the Bellcore and ITU-T standards. The S3019 is packaged in a 14 mm 80 PQFP, offering designers a small package outline.
