S24VP04

The S24VP04 was designed specifically for applications where the integrity of the stored data is paramount. In recent years, as the operating voltage range of serial E²PROMs has widened, most semiconductor manufacturers have arbitrarily eliminated their V_CC sense circuits.

The S24VP04 will protect your data by guaranteeing write lockout below the selected V_CC Lockout voltage.

Temperature Under Bias ............................................... -40°C to +85°C
Storage Temperature .................................................. -65°C to +125°C
Soldering Temperature (less than 10 seconds) ............................. 300°C
Supply Voltage ........................................................................... 0 to 6.5V
Voltage on Any Pin ....................................................... -0.3V to V_CC+0.3V
ESD Voltage (JEDEC method) ......................................................... 2,000V
NOTE: These are STRESS ratings only. Appropriate conditions for operating these devices are given elsewhere in this specification. Stresses beyond those listed here may permanently damage the part. Prolonged exposure to maximum ratings may affect device reliability.

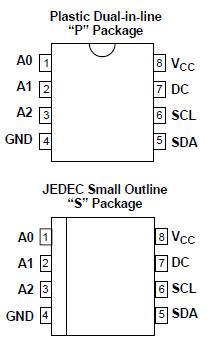

The S24VP04 is a 4K-bit serial E²PROM memory integrated with a precision V_CC sense circuit. The sense circuit will disable write operations whenever V_CC falls below the V_LOCK voltage. It is fabricated using SUMMIT's advanced CMOS E²PROM technology and is suitable for both 3 and 5 volt systems.

The S24VP04 is internally organized as 512 x 8. It features the I²C serial interface and software protocol allowing operation on a simple two-wire bus.
