S1T3361D

Features: • Low power consumption (4.0mA typ. at VCC = 4.0V)• Excellent input sensitivity (-3dB limiting, 2.0mVrms typ.)• Minimum number of external components required.• Operating Voltage: 2.5 to 7.0VApplication• Cordless phone (for home usage)• FM dual convers...

product image

S1T3361D Picture
See larger image
SeekIC No. : 004481505 Detail

S1T3361D: Features: • Low power consumption (4.0mA typ. at VCC = 4.0V)• Excellent input sensitivity (-3dB limiting, 2.0mVrms typ.)• Minimum number of external components required.• Ope...

S1T3361D Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1T3361D
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low power consumption (4.0mA typ. at VCC = 4.0V)
• Excellent input sensitivity (-3dB limiting, 2.0mVrms typ.)
• Minimum number of external components required.
• Operating Voltage: 2.5 to 7.0V


Application

• Cordless phone (for home usage)
• FM dual conversion communications equipment


Pinout

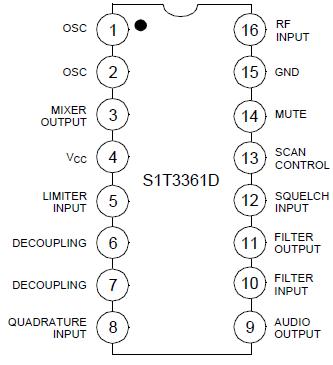

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
Max. Supply Voltage
VCC(MAX)
10
V
Supply Voltage Range
VCC
2.5 to 7.0
V
Detector Input Voltage
VI(DET)
1.0
VP-P
RF Input Voltage (VCC 4.0V)
VI(RF)
1.0
VRMS
Mute Function
VMUTE
-0.5 to +0.5
Vpeak
Operating Temperature
TOPR
-30 ~ +85
Storage Temperature
TSTG
-55 ~ +150



Description

The S1T3361D is designed for use in FM dual conversion communication. It contains a complete narrow band FM demodulation system operable to less than 2.5V supply voltage. This low-power narrow-band FM IF system provides the second converter, second IF, demodulator. Filter Amp and squelch circuitry for communications and scanning receivers.
