S1T2425A

Features: • Low voltage operation (1.5V : speech)• Transmit, Receive, Side tone and DTMF level are controlled by external resistors• Regulated voltage for dialer• Loop length equalization• MUTE function• Linear interface for DTMFPinoutSpecifications Chara...

product image

S1T2425A Picture
See larger image
SeekIC No. : 004481504 Detail

S1T2425A: Features: • Low voltage operation (1.5V : speech)• Transmit, Receive, Side tone and DTMF level are controlled by external resistors• Regulated voltage for dialer• Loop length...

S1T2425A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1T2425A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low voltage operation (1.5V : speech)
• Transmit, Receive, Side tone and DTMF level are controlled by external resistors
• Regulated voltage for dialer
• Loop length equalization
• MUTE function
• Linear interface for DTMF


Pinout

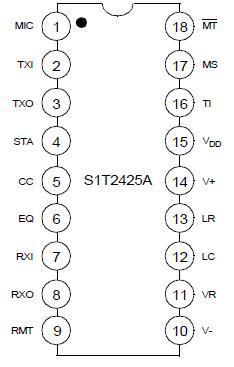

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
V+ Voltage
VC
-1.0 to +18
V
VDD(V+ =0)
VDD
-1.0 to +6
V
MT,MS inputs
VM
-1.0V to VDD+1
V
VLR
VLR
-1.0V to V+ -3.0
V
Storage Temperature
TSTG
-65 to +150



Description

The S1T2425A is telephone speech network integrated circuit which includes transmit amp, receive amp, side tone amp, DC loop interface function, DTMF input, voltage regulator for speech, a regulated output voltage for a dialer, and equalization circuit .
