S1M8821

Features: • High operating frequency dual synthesizer - S1M8821 : 0.1 to 1.2GHz (RF)/ 45 to 520MHz (IF) - S1M8822 : 0.2 to 2.0GHz (RF)/ 45 to 520MHz (IF) - S1M8823 : 0.5 to 2.5GHz (RF)/ 45 to 520MHz (IF)• Very low current consumption(8821:3.5mA, 22:4.5mA, 23:5.5mA)• Operating vol...

product image

S1M8821 Picture
See larger image
SeekIC No. : 004481475 Detail

S1M8821: Features: • High operating frequency dual synthesizer - S1M8821 : 0.1 to 1.2GHz (RF)/ 45 to 520MHz (IF) - S1M8822 : 0.2 to 2.0GHz (RF)/ 45 to 520MHz (IF) - S1M8823 : 0.5 to 2.5GHz (RF)/ 45 to ...

S1M8821 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1M8821
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High operating frequency dual synthesizer - S1M8821 : 0.1 to 1.2GHz (RF)/ 45 to 520MHz (IF) - S1M8822 : 0.2 to 2.0GHz (RF)/ 45 to 520MHz (IF) - S1M8823 : 0.5 to 2.5GHz (RF)/ 45 to 520MHz (IF)
• Very low current consumption(8821:3.5mA, 22:4.5mA, 23:5.5mA)
• Operating voltage range : 2.7 to 4.0V
• Selectable power saving mode(Icc=1uA typical @3V)
• Dual modulus prescaler : S1M8821/22 (RF) 64/65 or 128/129 S1M8823 (RF) 32/33 or 64/65 S1M8821/22/23 (IF) 8/9 or 16/17
• Programmability via serial bus interface
• No dead-zone PFD
• Variable charge pump output current
• High speed lock mode


Application

• Cellular telephone systems : S1M8821
• Portable wireless communications : S1M8822 (PCS/PCN, cordless)
• Wireless Local Area Networks (W-LANs) : S1M8823
• Other wireless communication systems


Pinout

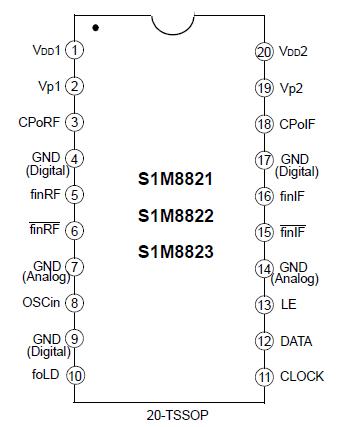

Connection Diagram


Specifications

Characteristic
Symbol
Value
Unit
Power supply voltage
VDD
0.0 to 4.0
V
Power dissipation
PD
600
mW
Operating Temperature
Ta
-40 to +85
Storage temperature
TSTG
-65 to +150
