S1L9226X

Features: • RF amplifier (CD, CD-R, CD-RW applicable)• Gain setting & monitoring for the CD-R, CD-RW DISC• RFAMP offset adjustment• Focus error amp & Febias adjustment• Tracking error amp & balance, gain adjustment• FOK, defect, mirror detect• ...

product image

S1L9226X Picture
See larger image
SeekIC No. : 004481469 Detail

S1L9226X: Features: • RF amplifier (CD, CD-R, CD-RW applicable)• Gain setting & monitoring for the CD-R, CD-RW DISC• RFAMP offset adjustment• Focus error amp & Febias adjustmen...

S1L9226X Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S1L9226X
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• RF amplifier (CD, CD-R, CD-RW applicable)
• Gain setting & monitoring for the CD-R, CD-RW DISC
• RFAMP offset adjustment
• Focus error amp & Febias adjustment
• Tracking error amp & balance, gain adjustment
• FOK, defect, mirror detect
• Center voltage amplifier
• APC (Automatic Power Control)
• RF AGC & EQ control (AGC Level Control Compatible)
• Enhanced EFM slice (Double Asymmetry Method)
• Focus servo loop & offset adjustment
• Tracking servo loop & offset adjustment
• Sled servo loop
• Spindle servo loop
• Auto-sequence
• Fast search mode (1 - 36000 track jump)
• Interruption countermeasure
• Focus & Tracking servo muting controlled by EFM duty check
• RF peaking prevention system by EFM duty check
• Focus, tracking, spindle loop pole move option
• Operating voltage 2.7V ¾ 3.3V
• Power saving mode <Notice> LPC Control used by side beam signal, it related to pick-up assurance. When used pick-up, the specification is present extra.


Pinout

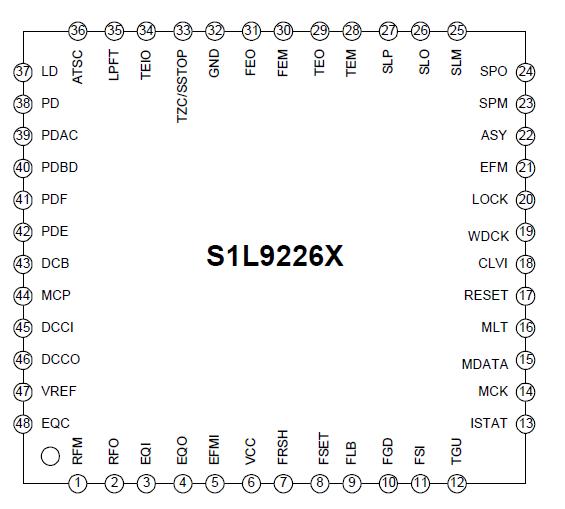

Connection Diagram


Specifications

Item
Symbol
Value
Unit
Power supply voltage
VDD
2.7 - 3.3
V
Input supply voltage
V1
4.5
V
Operating Temperature
TOPR
-20 - 75
Storage temperature
TSTG
-40 - 125
