Product Details

Description

Pinout

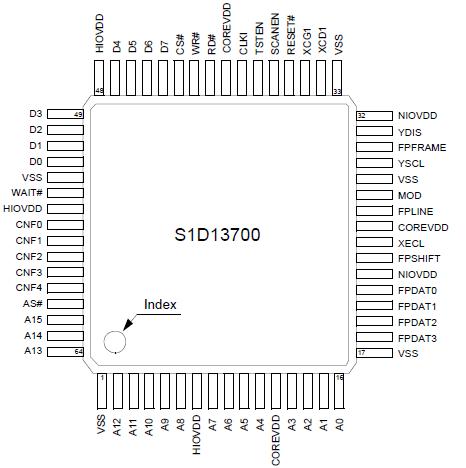

Connection Diagram

Specifications

Symbol	Parameter	Ratings	Unit
COREV_DD	Supply Voltage	V_SS-0.3to4.0	V
IO V_DD	Supply Voltage	V_SS-0.3to7.0	V
V_IN	Input Voltage	V_SS-0.3toIO V_CC+0.5	V
V_OUT	Output Voltage	V_SS-0.3toIO V_CC+0.5	V
T_stg	Storage Temperature	-65 to 150
T_SOL	Solder Temperature/Time	260 for 10 sec. max at lead
