S-4543A

Features: · Wide operating voltage range Logic power supply voltage: -2.4 to -5.5 V LCD drive voltage: -2.7 to -11.5 V· Built-in CR oscillation circuit: 18 kHz· 120 segments, 32 common driver outputs, one common output for icon· 8-bit´120-segment´4-page +120 segments for Icon· 1/32 dut...

product image

S-4543A Picture
See larger image
SeekIC No. : 004482387 Detail

S-4543A: Features: · Wide operating voltage range Logic power supply voltage: -2.4 to -5.5 V LCD drive voltage: -2.7 to -11.5 V· Built-in CR oscillation circuit: 18 kHz· 120 segments, 32 common driver output...

S-4543A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
S-4543A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/30

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  Wide operating voltage range
    Logic power supply voltage: -2.4 to -5.5 V
    LCD drive voltage: -2.7 to -11.5 V
·  Built-in CR oscillation circuit: 18 kHz
·  120 segments, 32 common driver outputs, one common output for icon
·  8-bit´120-segment´4-page +120 segments for Icon
·  1/32 duty or 1/33 duty selectable
·  68 family MPU interface
·  Serial interface
·  Shipping: TCP Bare chip with gold bumps


Pinout

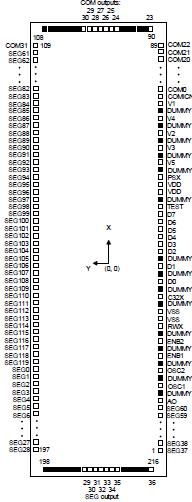

Connection Diagram


Specifications

Parameter Symbol Ratings Unit
Supply voltage VSS -6.0 to +0.4 V
LCD drive voltage 1 V5 -13.5 to +0.4 V
LCD drive voltage 2 V1, V2, V3, V4 V5 to +0.4 V
Input voltage VIN VSS-0.4 to +0.4 V
Output voltage VOUT VSS-0.4 to +0.4 V
Power dissipation PD 250 mW
Operating temperature Topr -30 to +85 °C
Storage temperature Tstg -65 to +150 °C

Note 1: When a voltage over the absolute maximum rating is applied, the characteristics of the device may be drastically aggravated or the chip may be broken.
Note 2: It is recommended to use the device within the range of electrical characteristics. When it is used out of the range, the operations and the reliability of the device cannot be guaranteed.



Description

The S-4543A is a dot matrix liquid crystal display driver IC having an 8- bit MPU interface, serial interface, display RAM, CR oscillator, 120 segment driver outputs, and 33 common driver outputs. Since S-4543A operates at a low voltage and low current, it is optimum for the LCD drivers for the portable equipment.
