RX3930

Features: · Integrated VCO with fixed ÷ 64 prescaler, phase/frequency detector, and referenceoscillator forming complete phase-locked loop· User selectable FM or FSK output· RSSI output with 70 dB dynamic range· Receiver enable pin for power saving· TQFP-32 package (5mm x 5mm)Application· Wireless...

product image

RX3930 Picture
See larger image
SeekIC No. : 004480574 Detail

RX3930: Features: · Integrated VCO with fixed ÷ 64 prescaler, phase/frequency detector, and referenceoscillator forming complete phase-locked loop· User selectable FM or FSK output· RSSI output with 70 dB d...

RX3930 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
RX3930
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Integrated VCO with fixed ÷ 64 prescaler, phase/frequency detector, and referenceoscillator forming complete phase-locked loop
· User selectable FM or FSK output
· RSSI output with 70 dB dynamic range
· Receiver enable pin for power saving
· TQFP-32 package (5mm x 5mm)






Application

· Wireless mouse
· Wireless amplifier/ speaker/ earphone/ microphone
· Wireless car alarm system

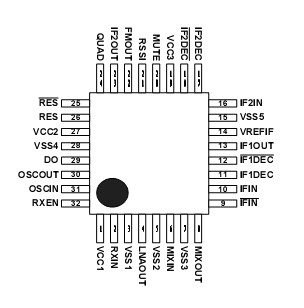

Pinout

Connection Diagram




Specifications

Parameter
Symbol
Rating
Unit
Supply voltage
VCC1
VCC2
VSS 0.5 to VSS + 5.5
V
Operating temperature range
TOPR
40 to 85
Storage temperature range
TSTG
40 to 150
Soldering temperature range
TSLD
255
Soldering time range
tSLD
10
s

VSS = 0 V






Description

The RX3930 is a low power 433/868/915 MHz FM/FSK receiver IC which is suitable foruse in the North American 915 MHz and the European 433 and 868 MHz ISM bands.
